Standard Equipment

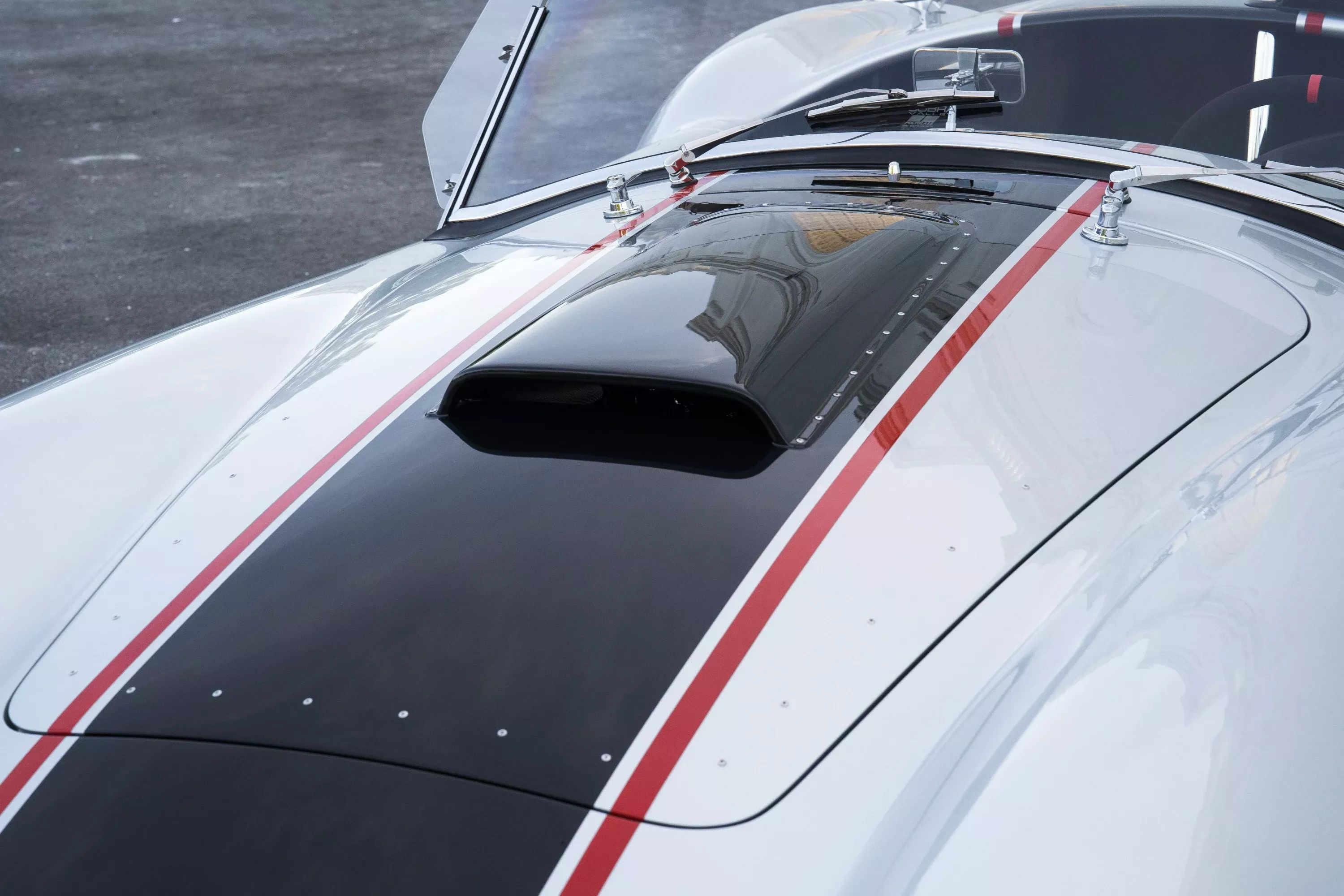

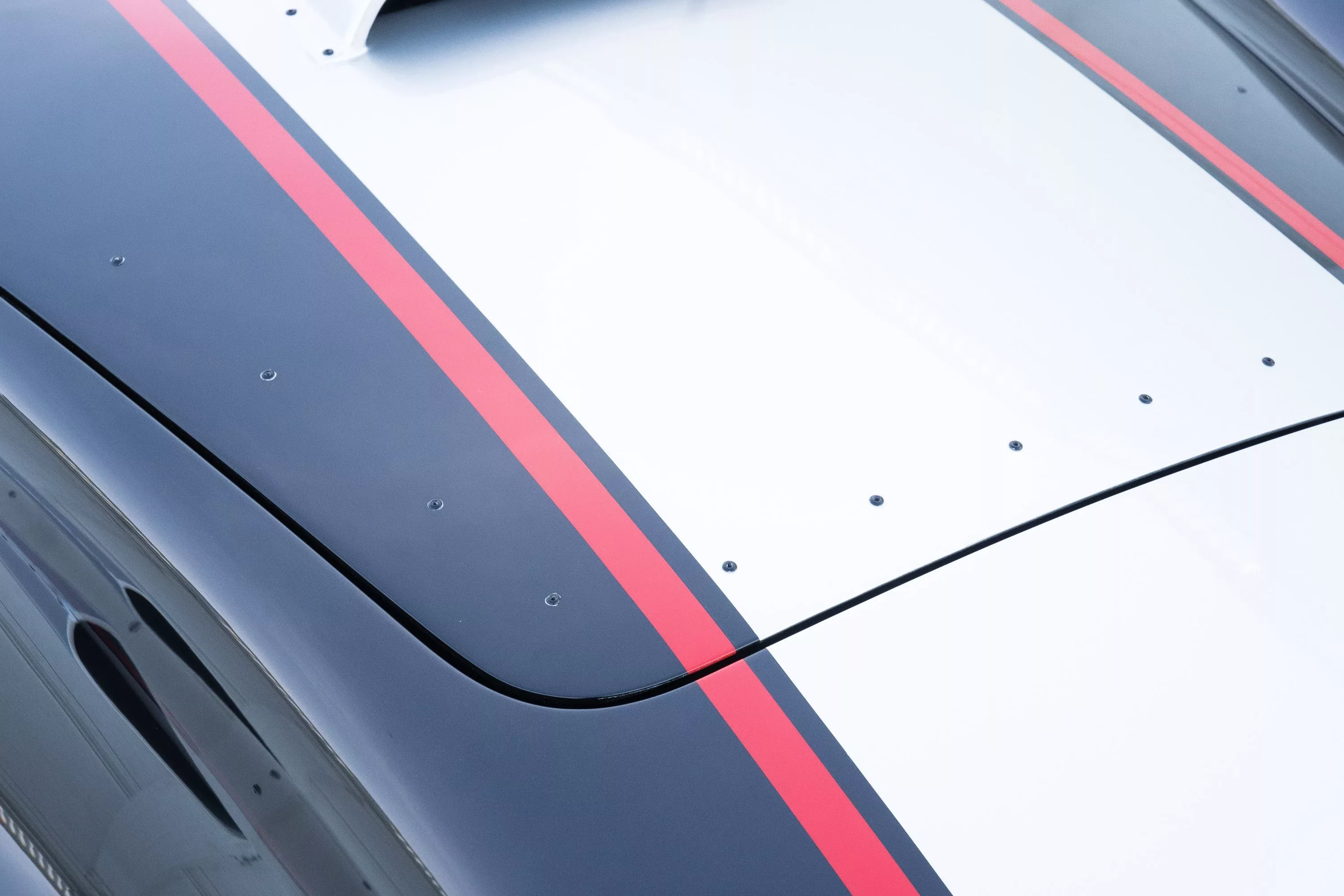

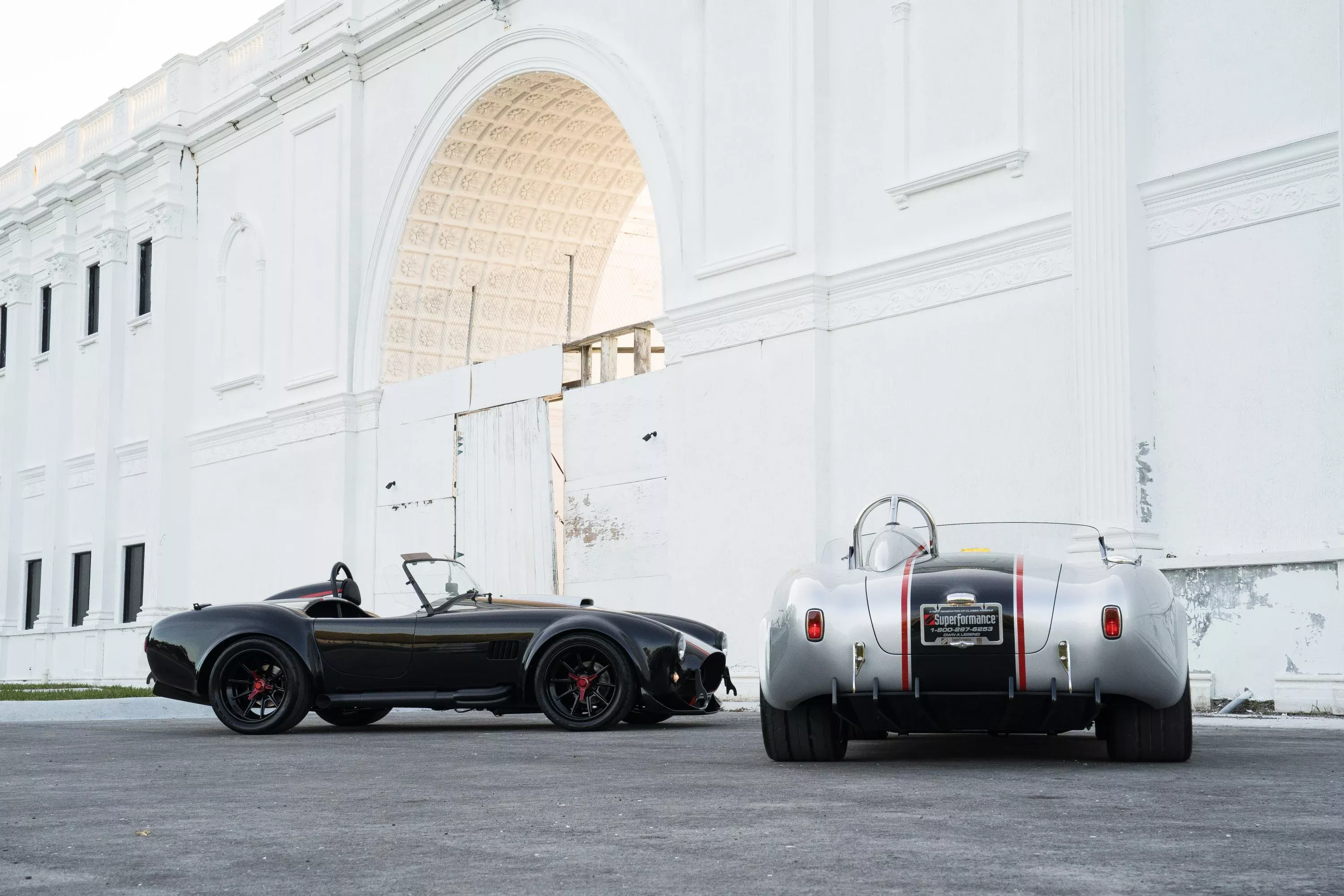

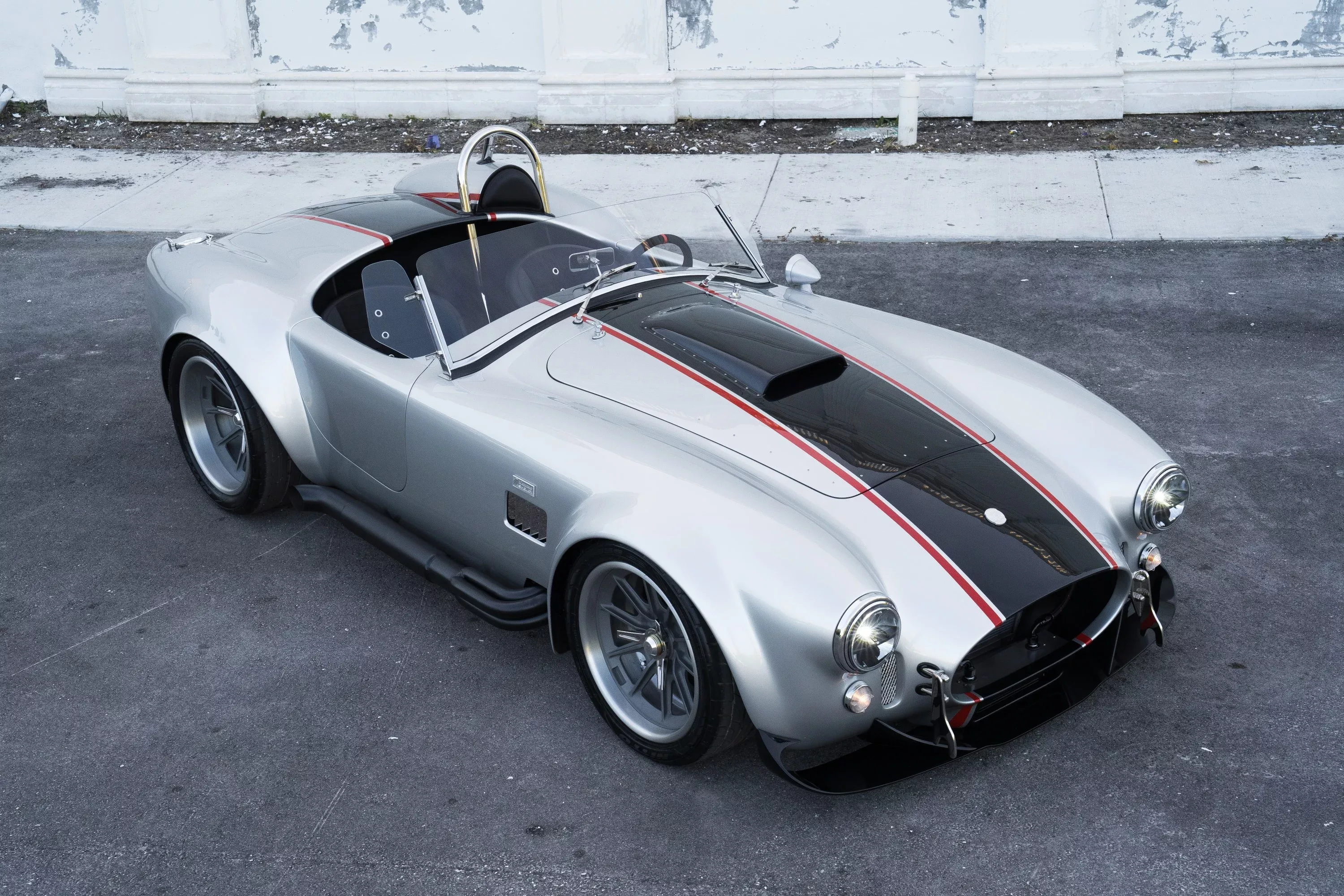

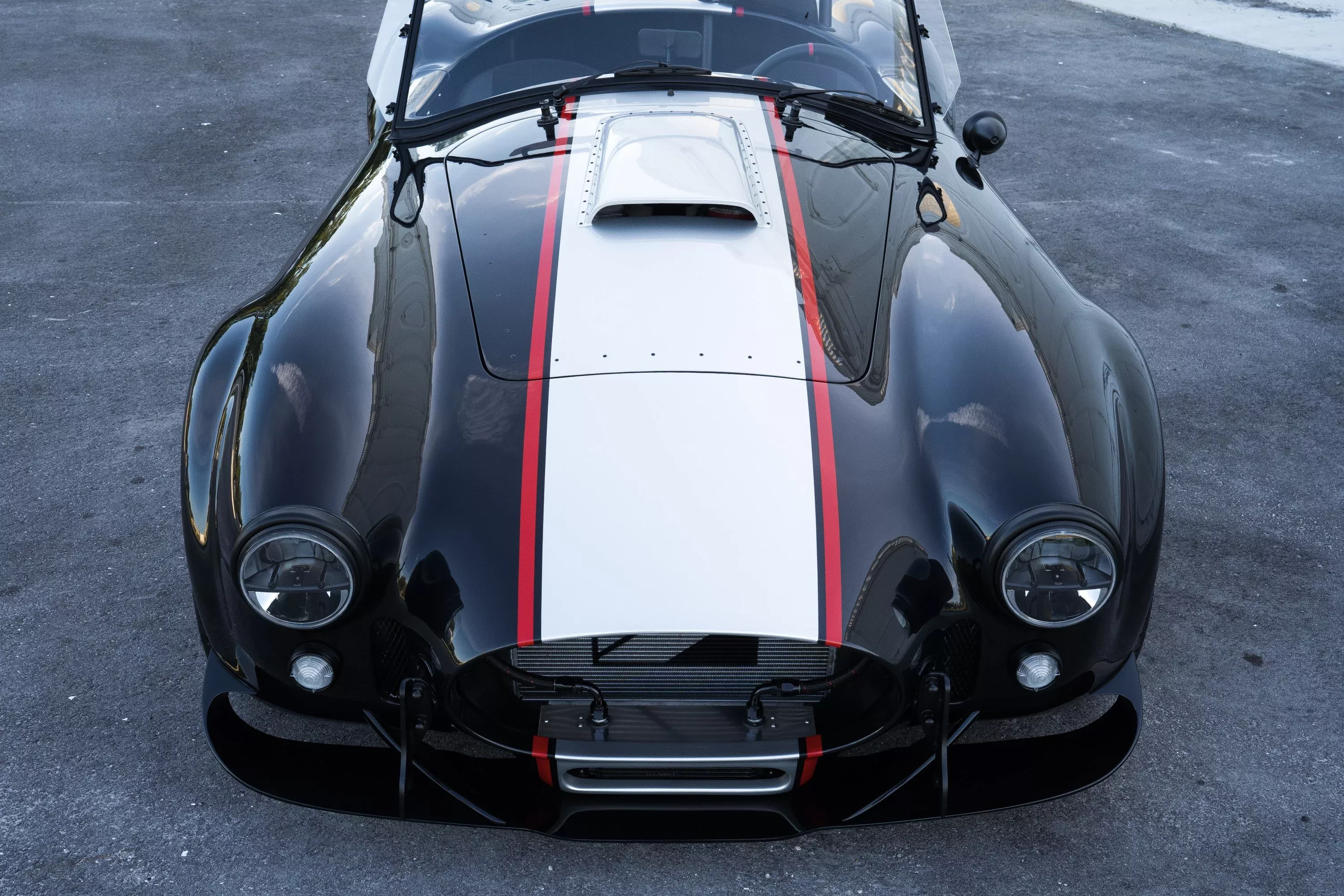

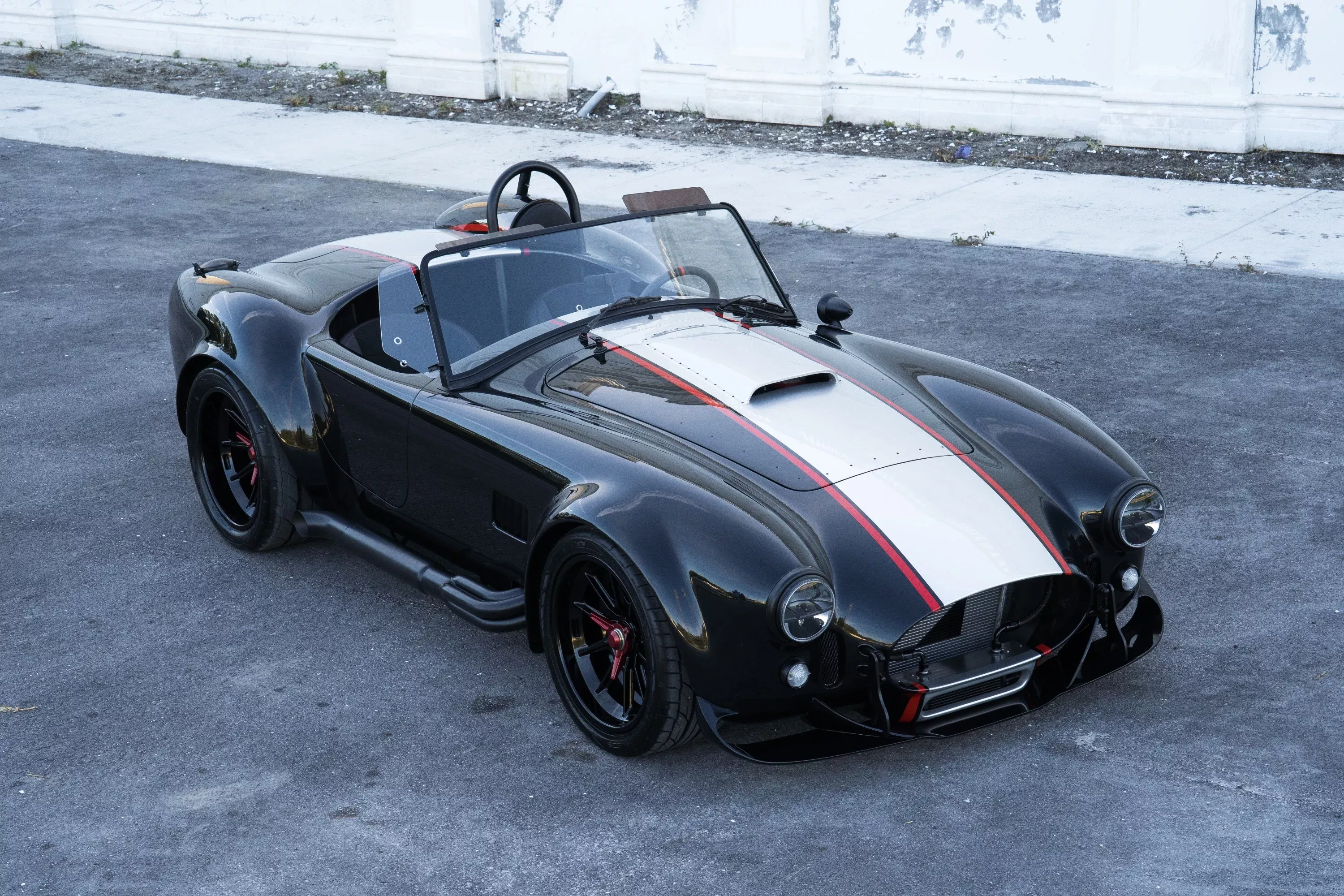

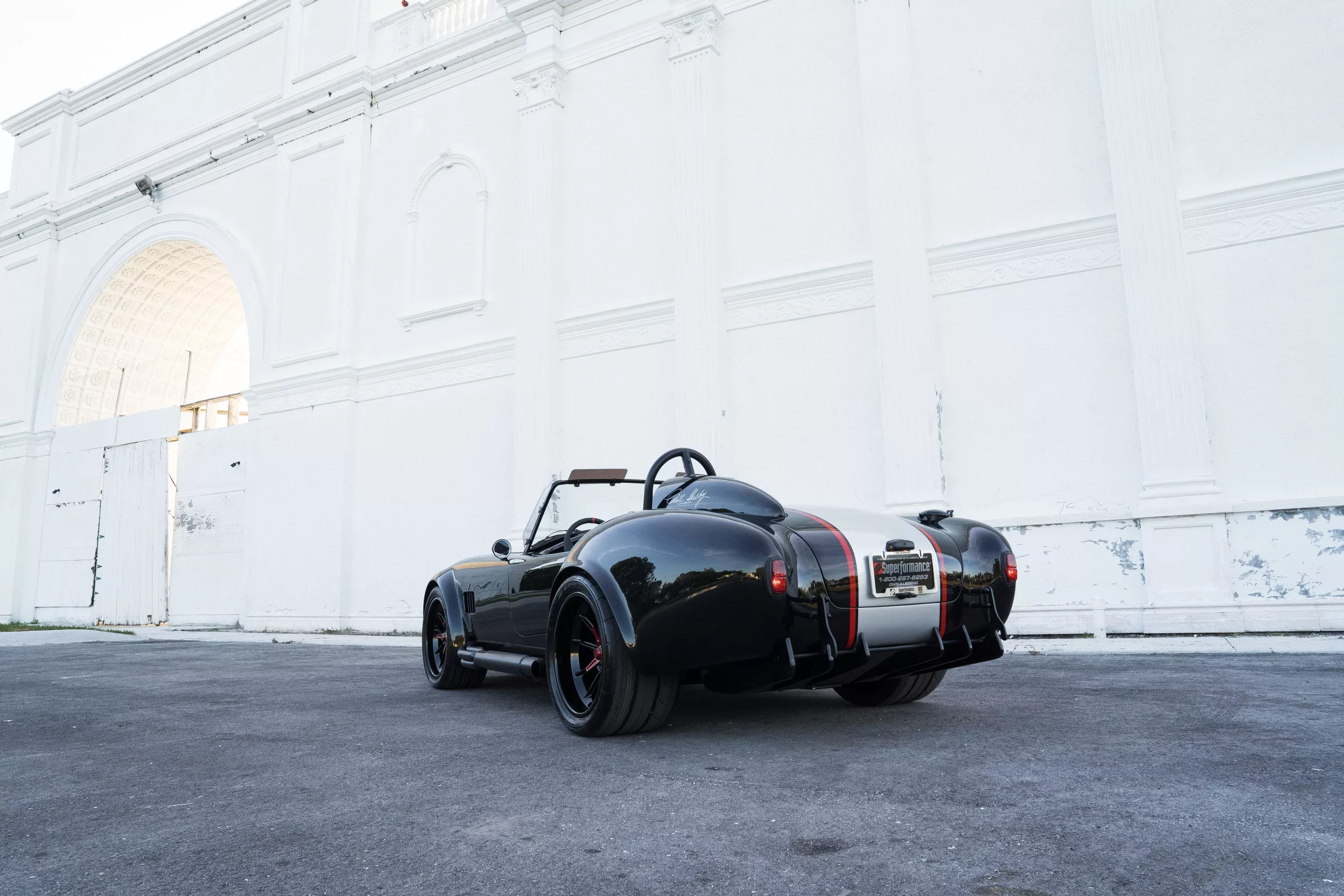

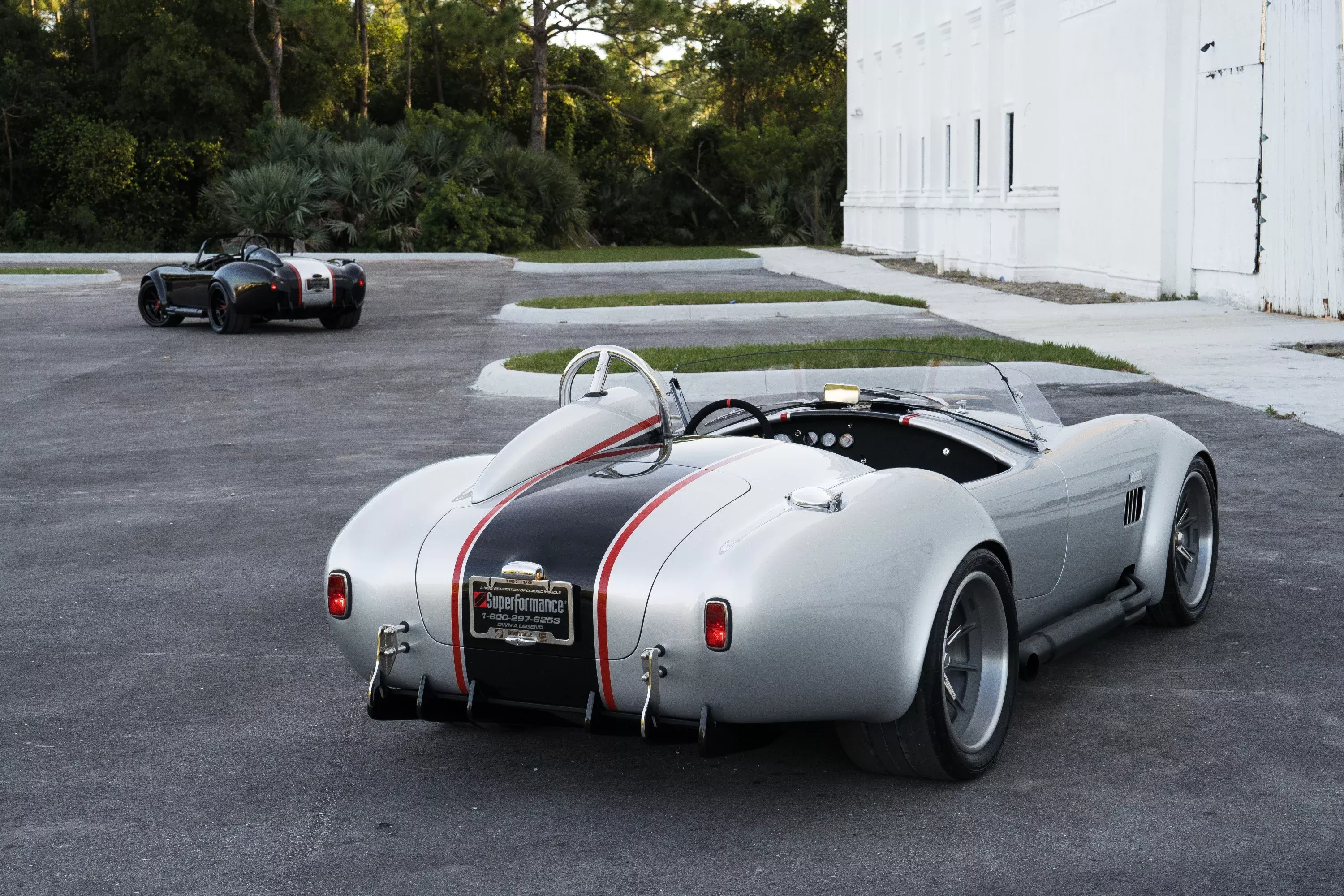

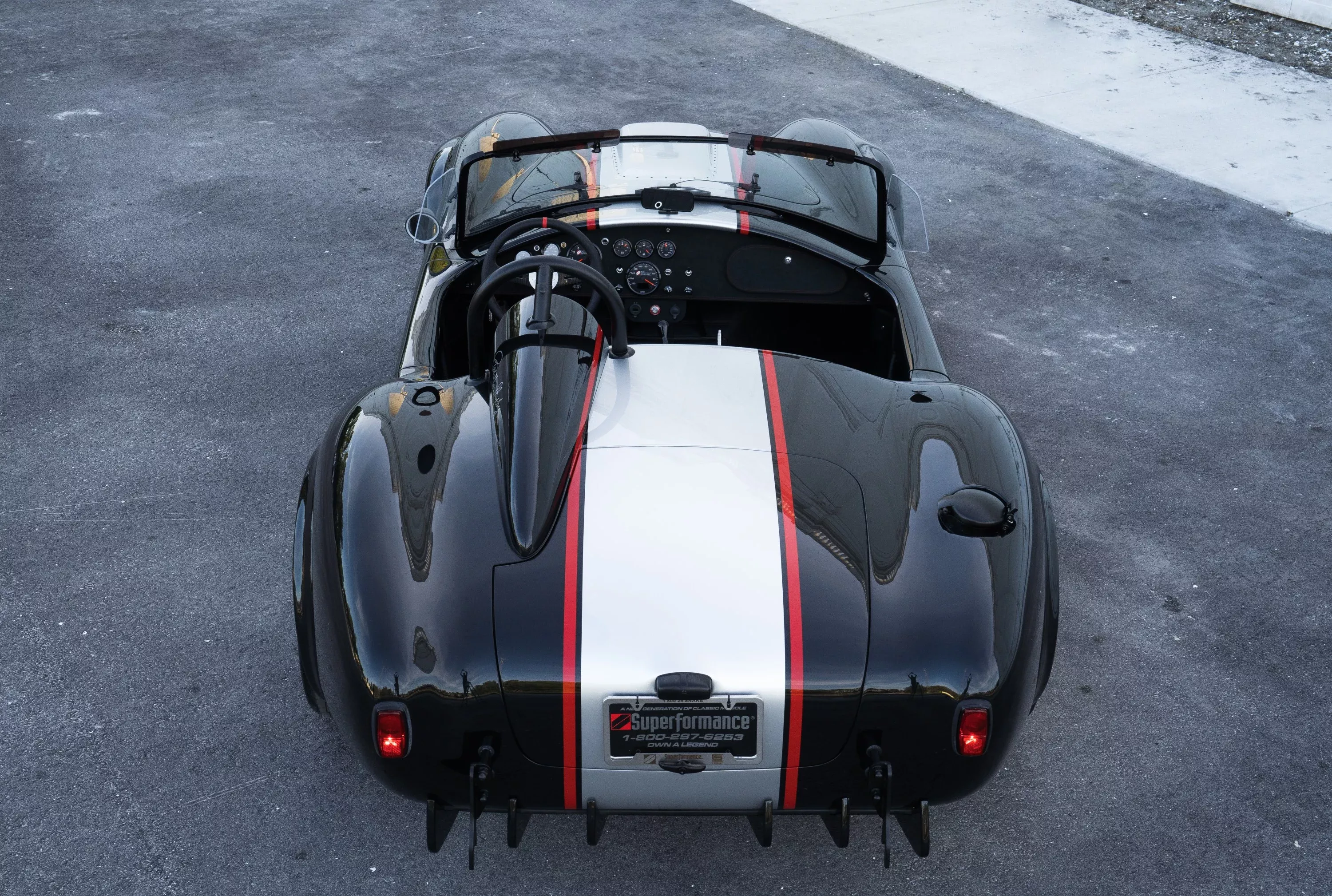

  • Show quality two-stage paint finishes Carbon Flash Black with Sterling Marlin Crystal
  • Hand laminated fiberglass body with reinforcing inserts
  • Heavy duty TIG welded ladder frame chassis with crumple zones
  • Fully independent front and rear suspension
  • Limited slip differential
  • Willwood® power-assisted vented disc brakes (4-pot calipers front, single-pot calipers rear)
  • Custom crafted coil-over shocks

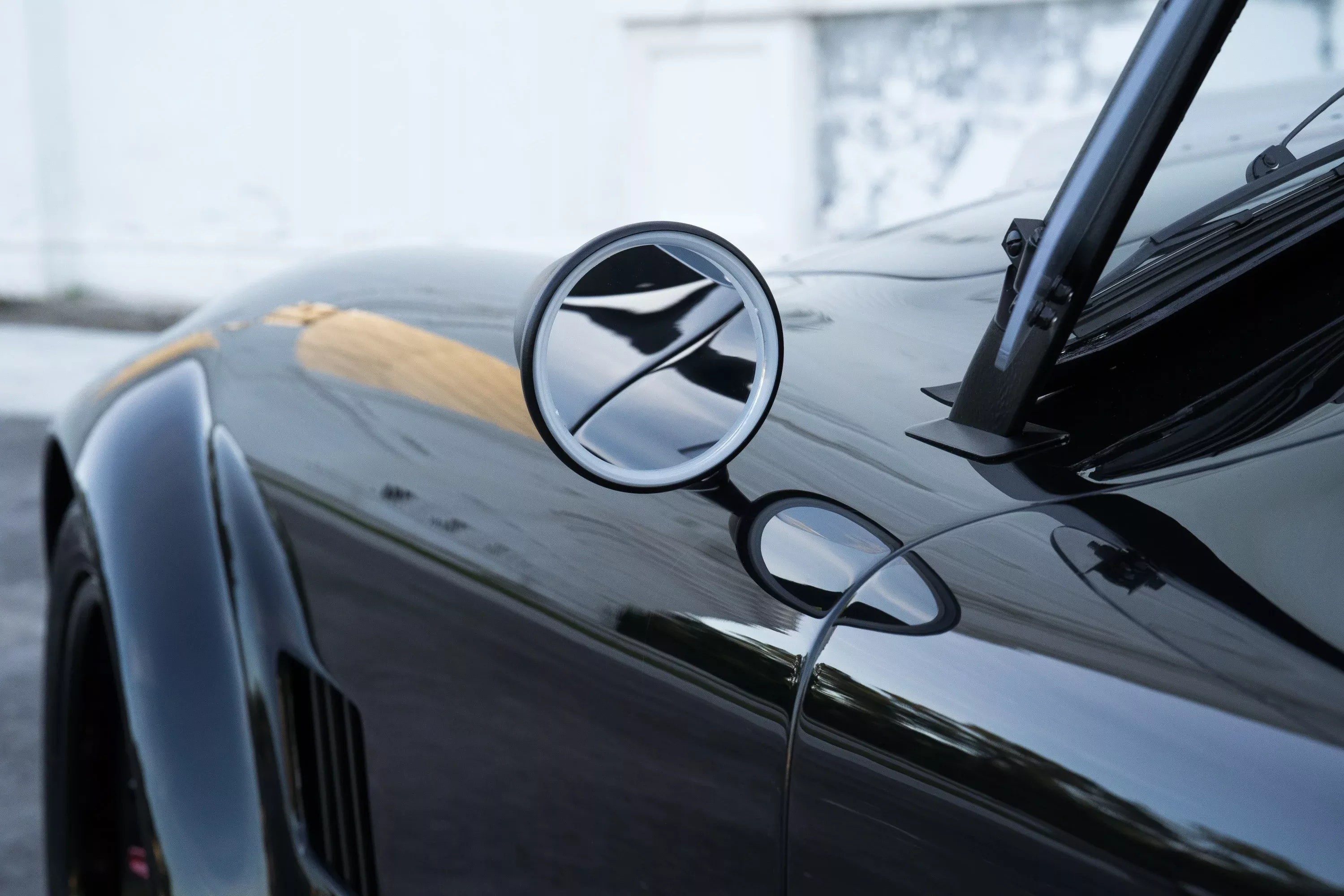

  • Side and rear view mirrors
  • Original style pedals, catches and fittings
  • Original style shifter and hand brake lever

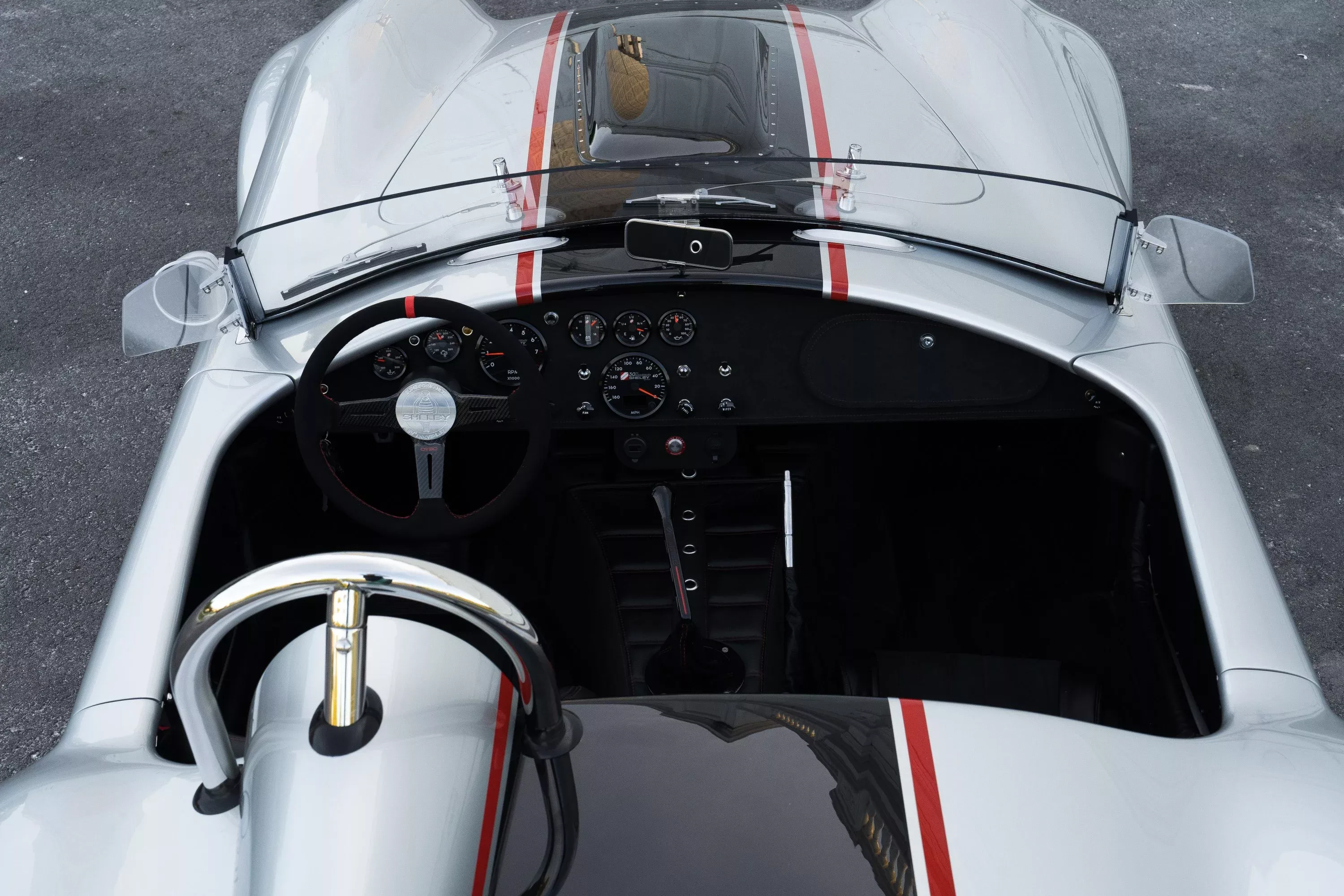

  • Carpeted interior and trunk, aluminum finished firewall

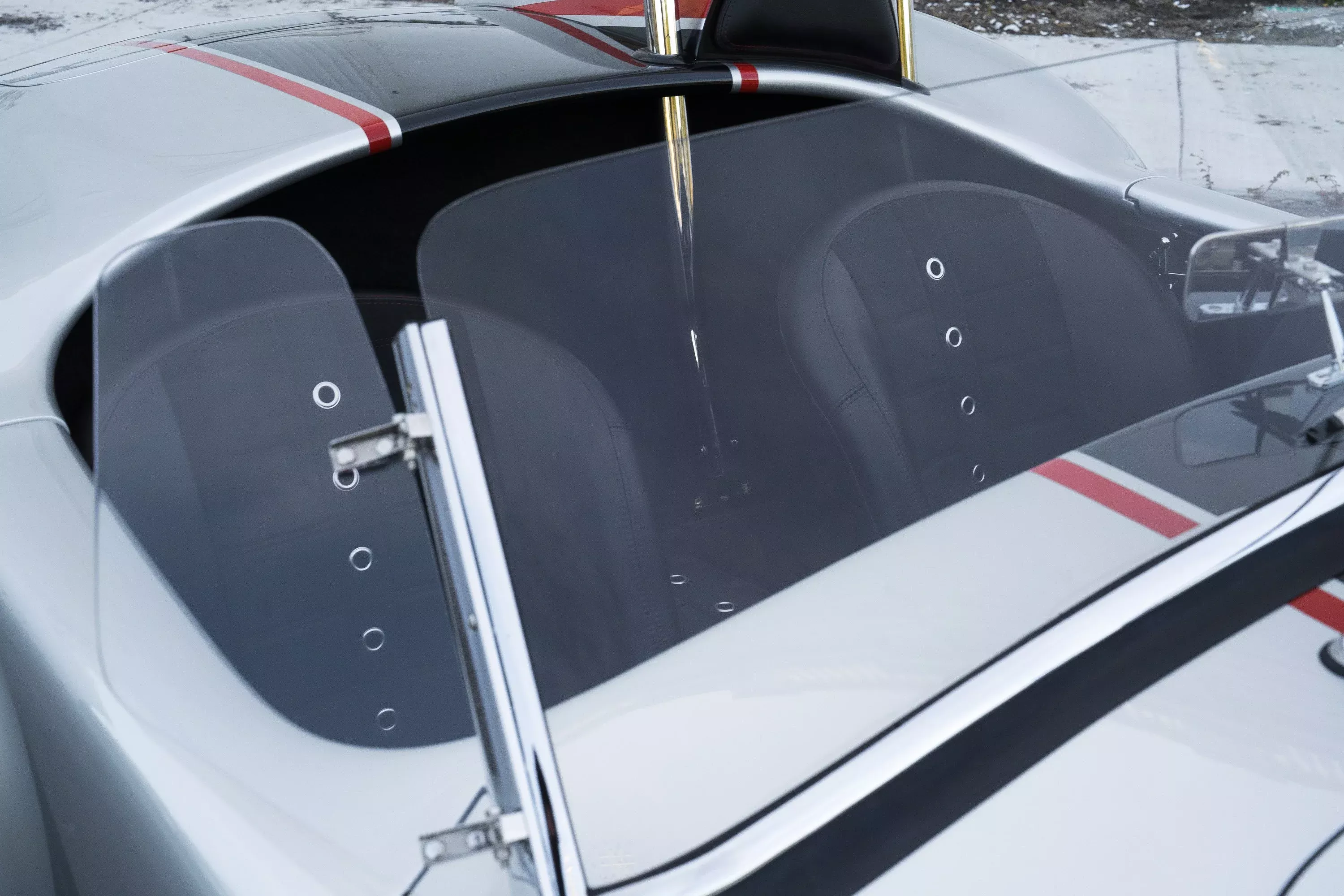

  • Sun visors and wind wings
  • Wipers & vasher, heater/defogger

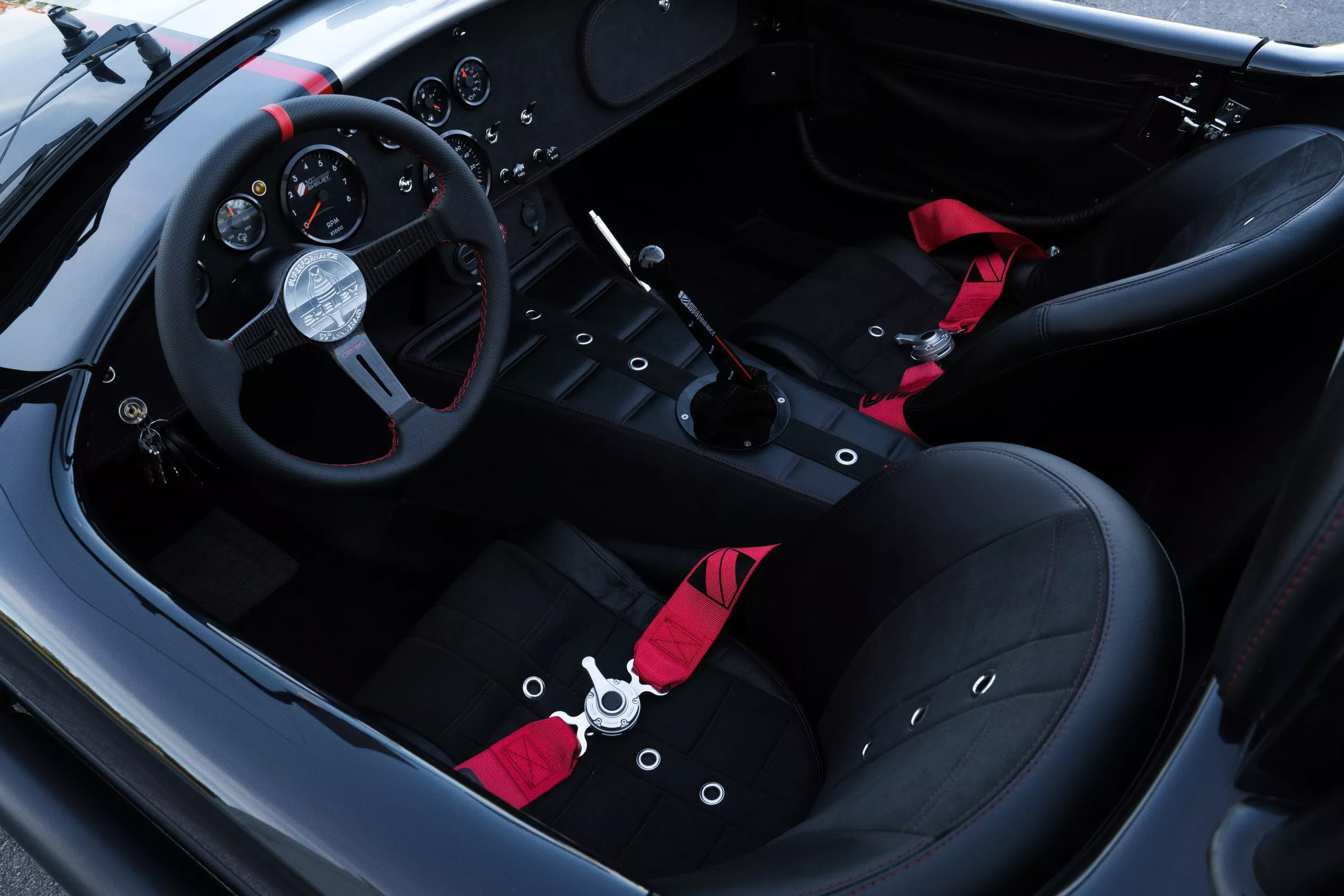

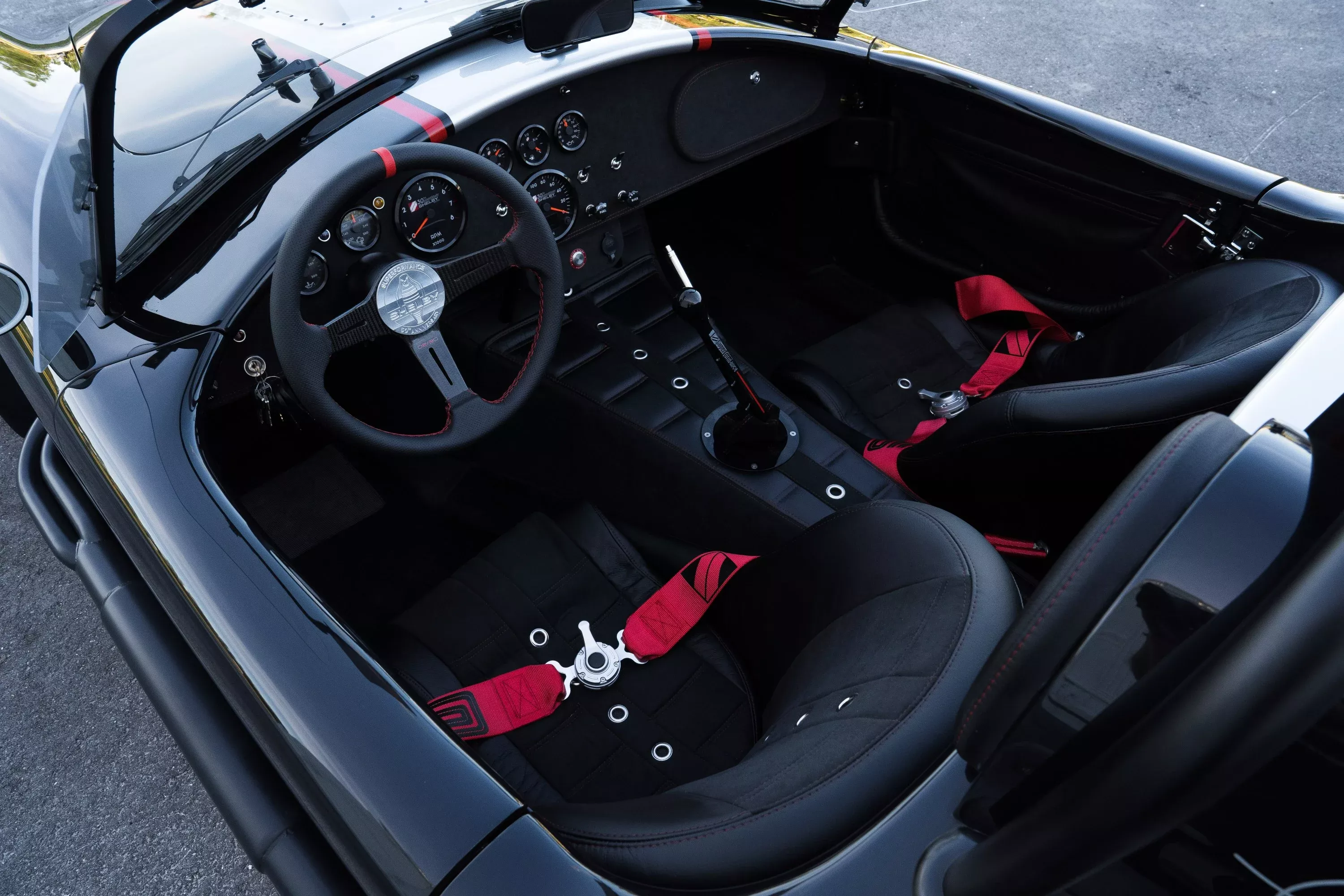

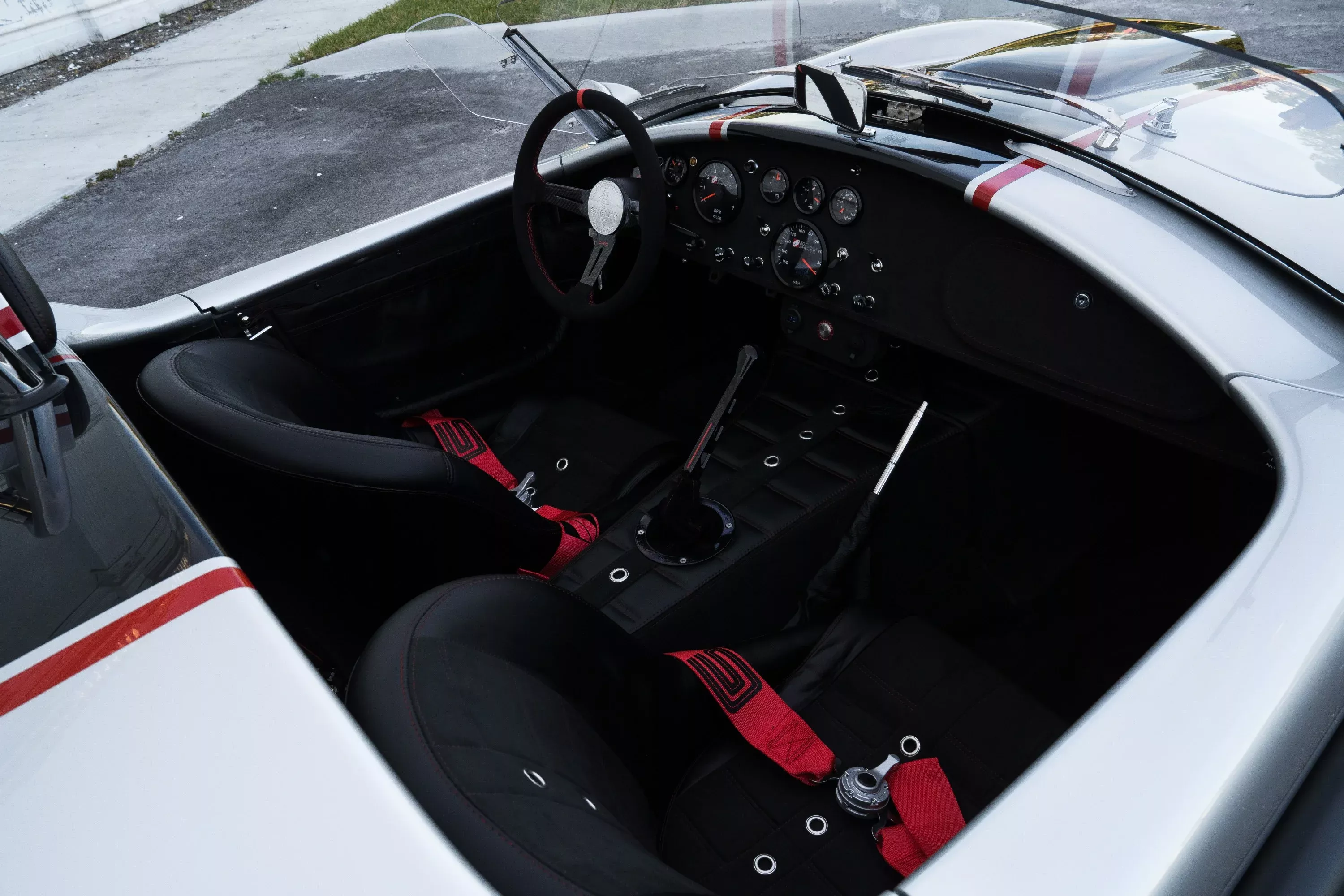

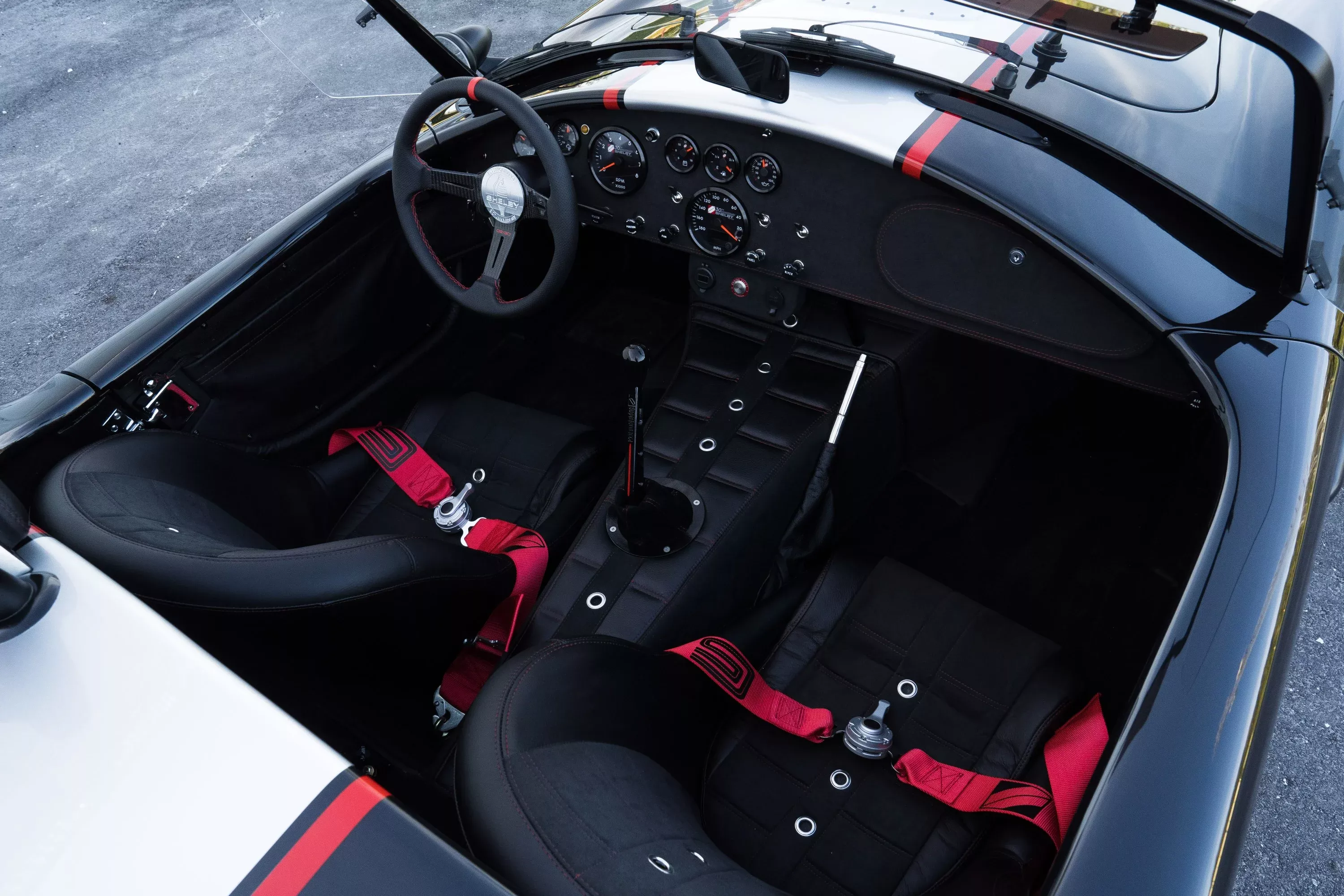

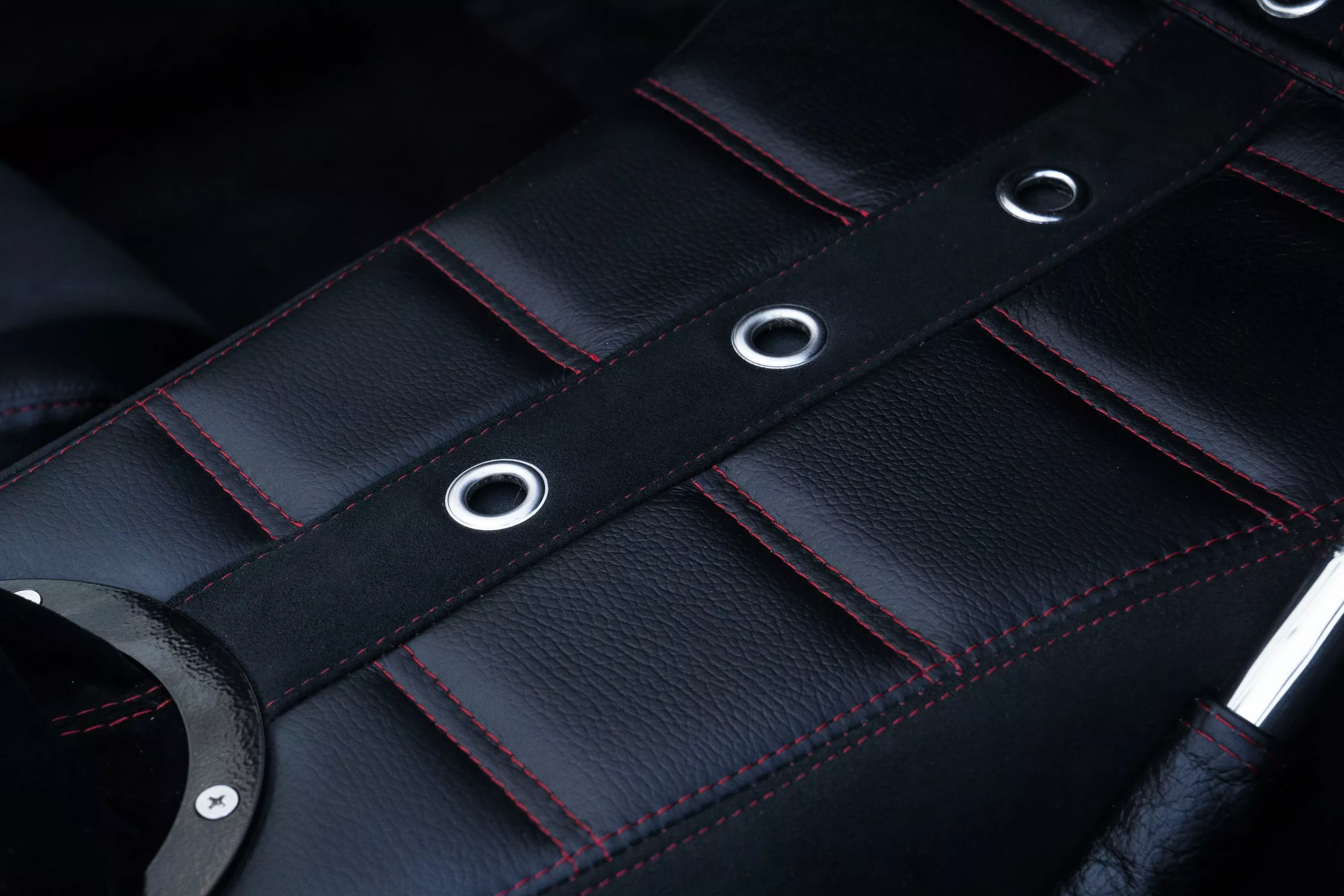

  • Alcantara seating surfaces (drivers adjusts)
  • Original style latch-lock seat belts

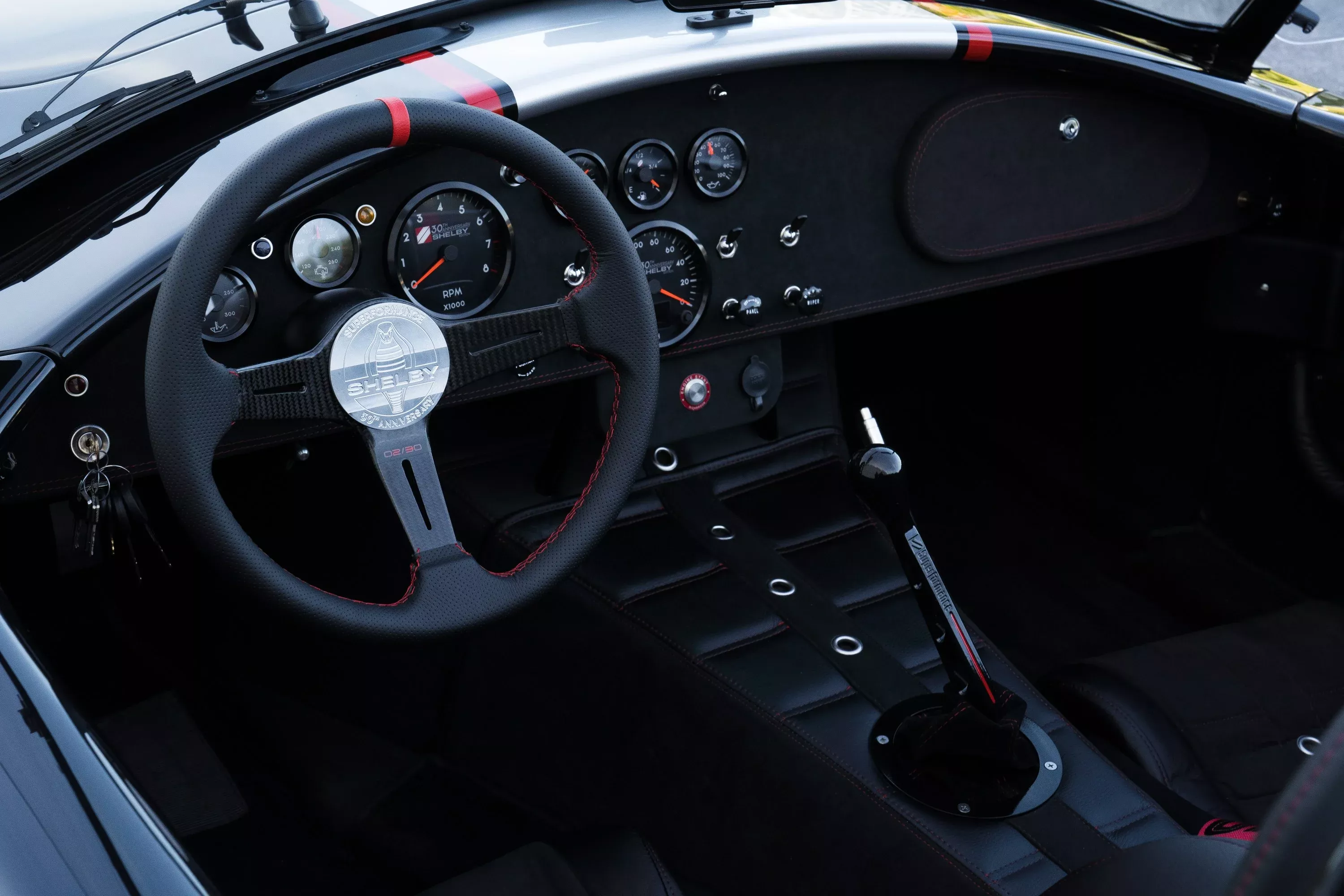

  • Carbon fiber steering wheel

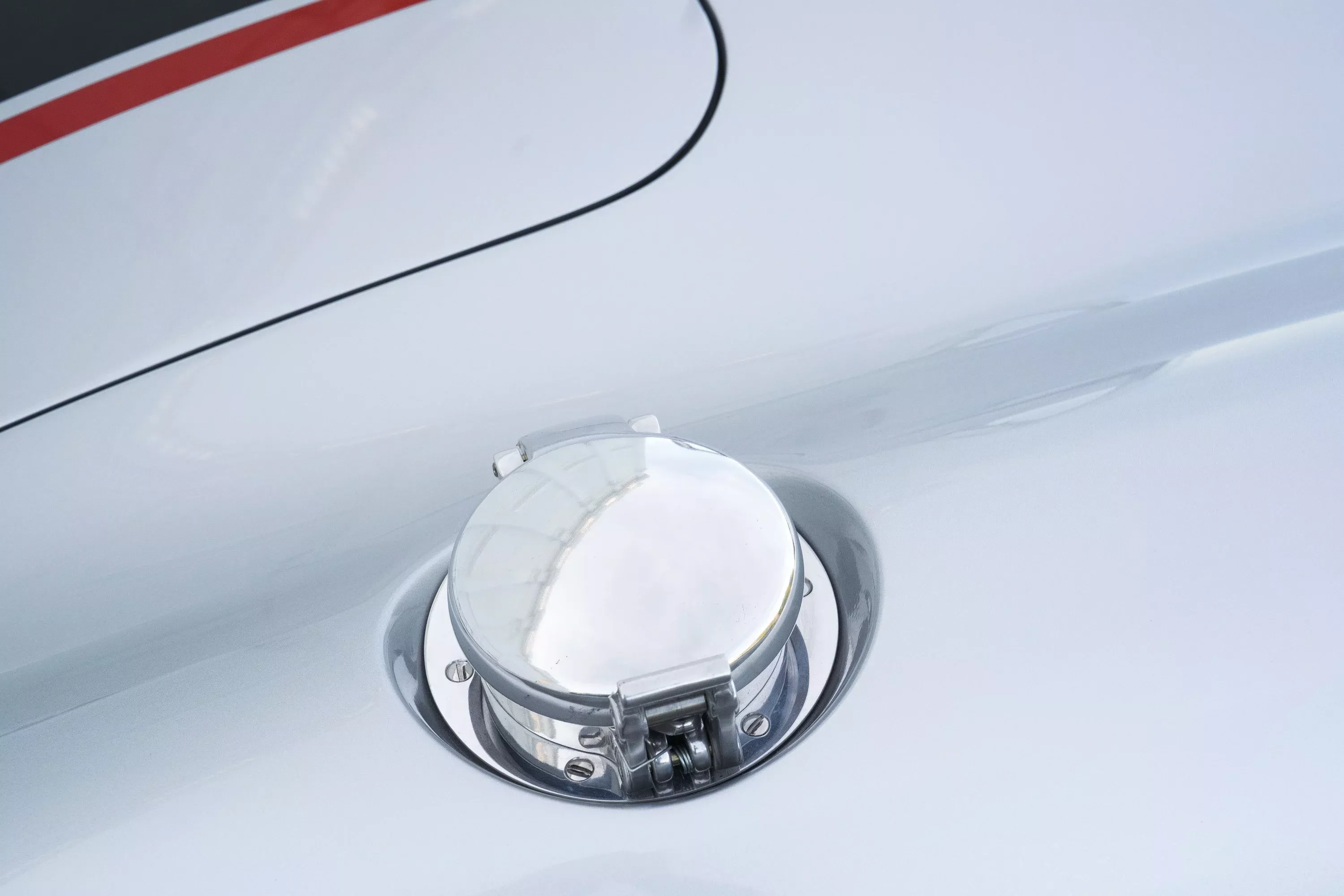

  • Monza style filler (locking gas cap)
  • Aluminum, single core hi-performance radiator, shroud and dual fans
  • Oil cooler
  • Stainless steel fuel tank 17 gallons (pressure tested)

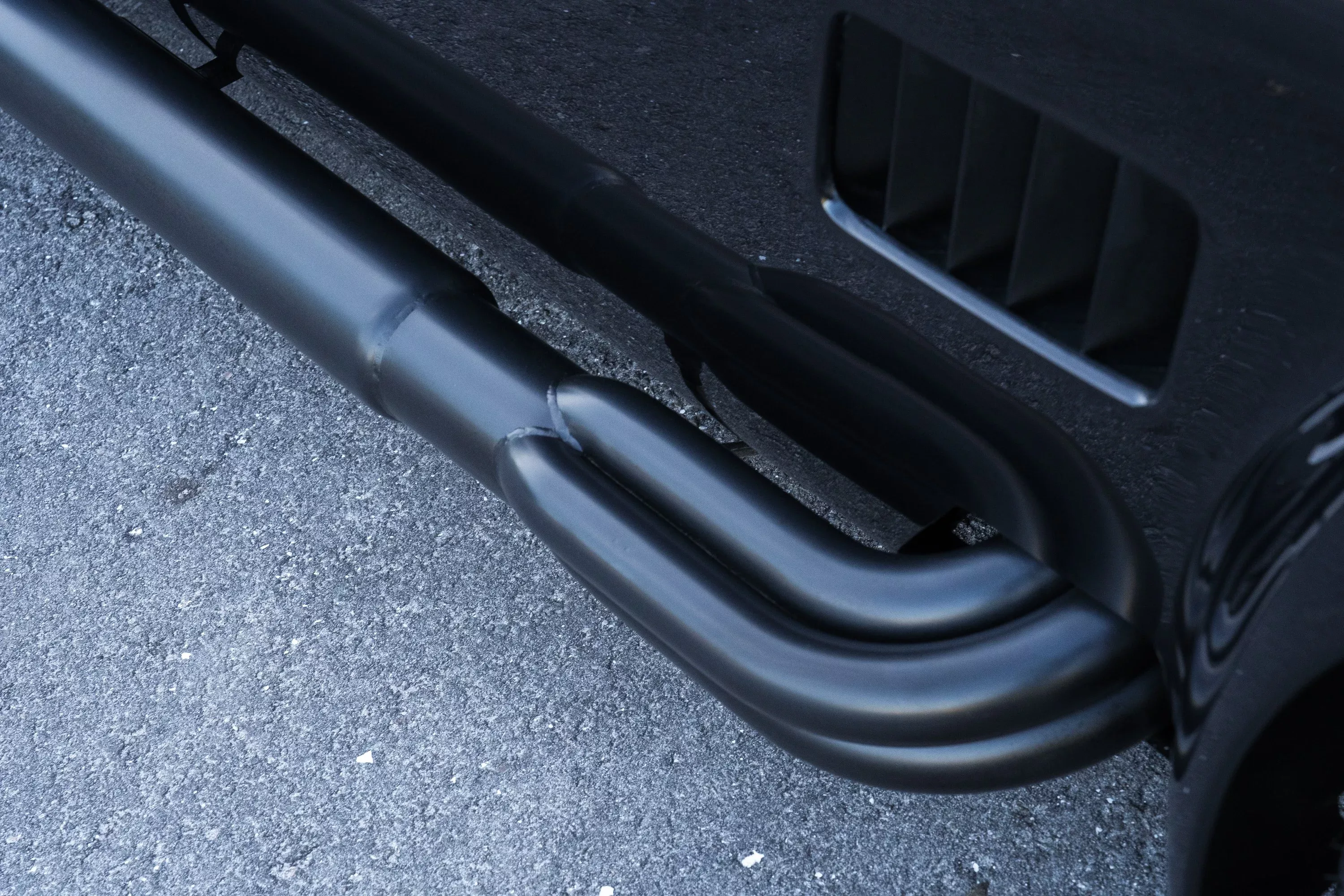

  • Original style side pipes and headers to accommodate Ford based V8 engine

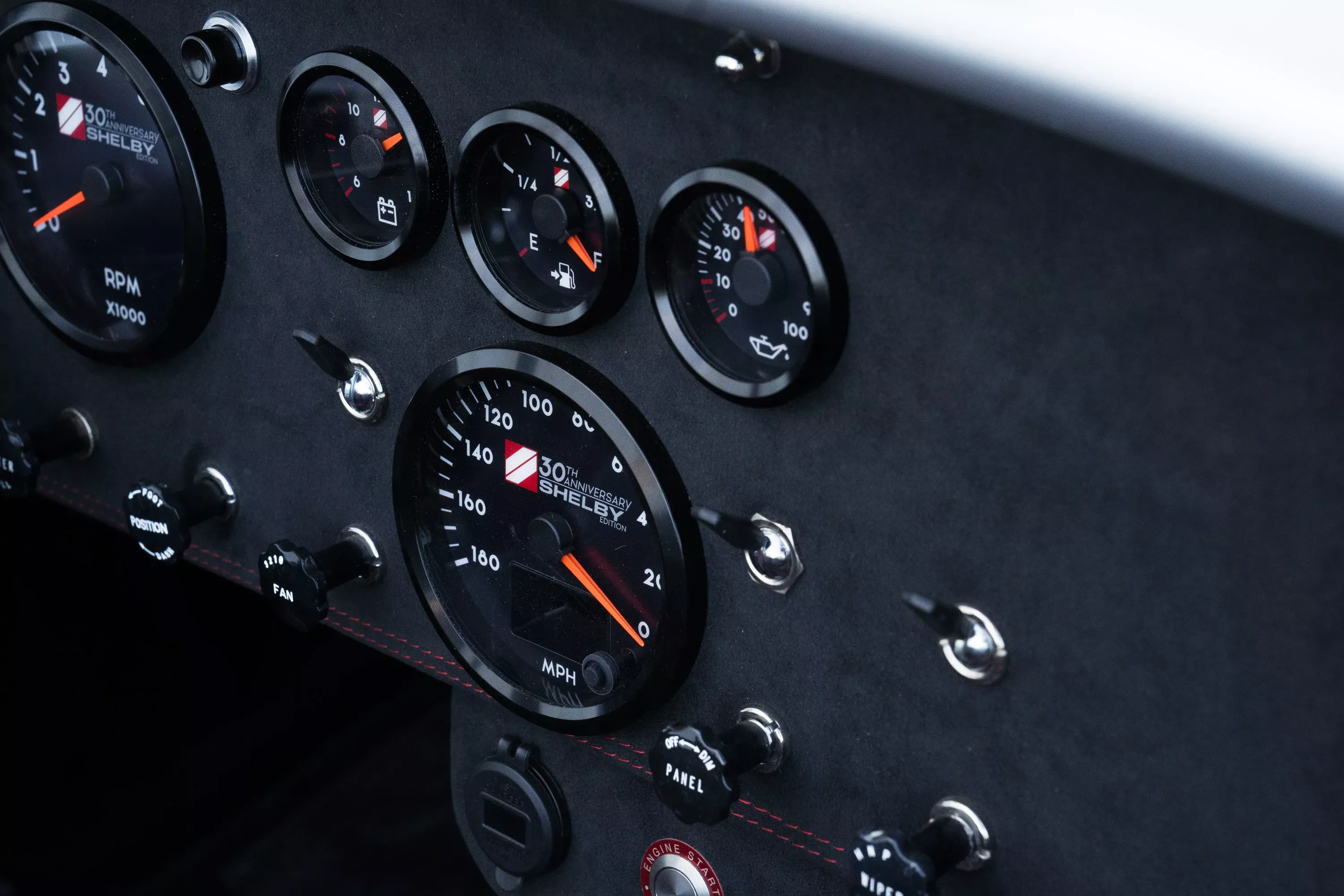

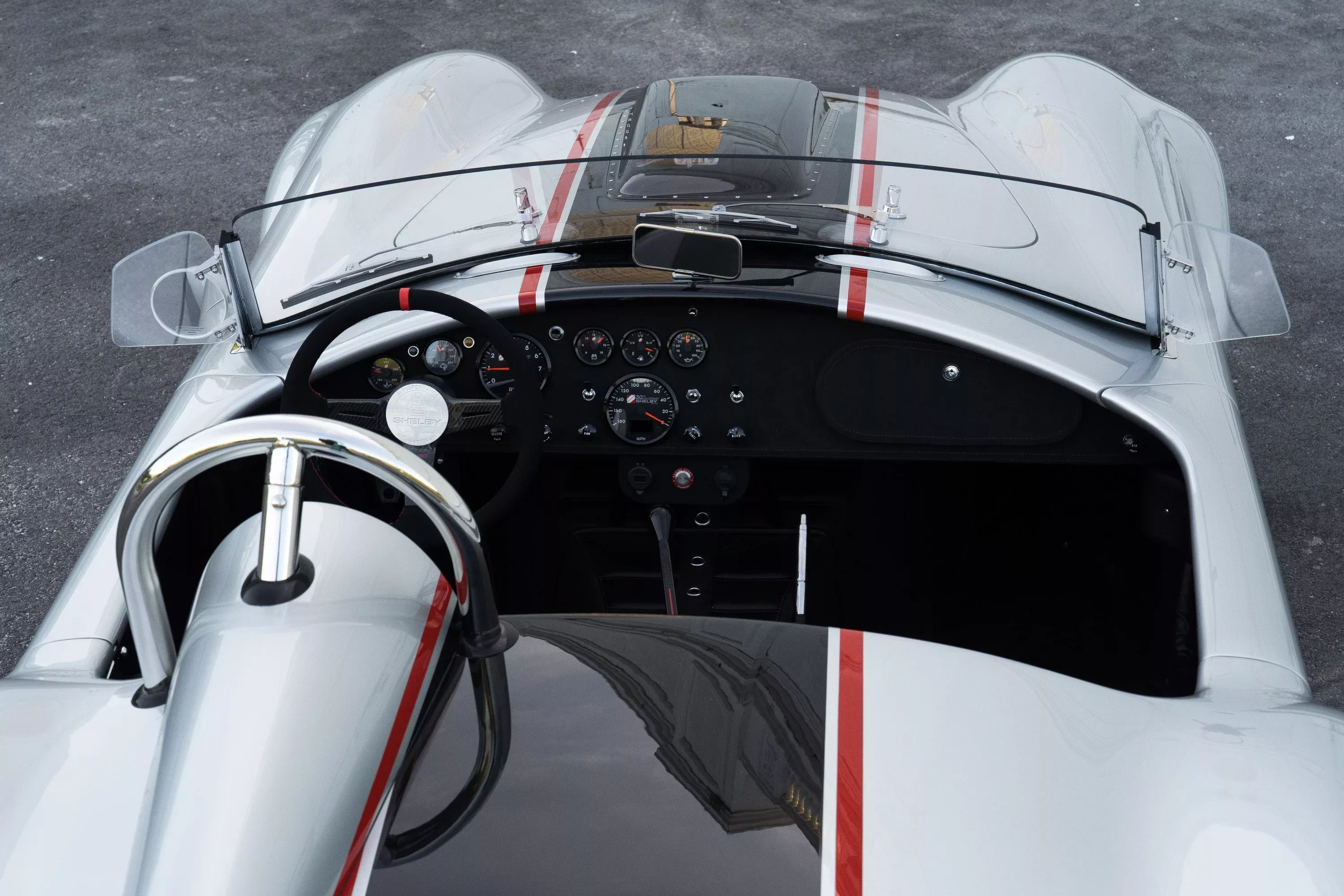

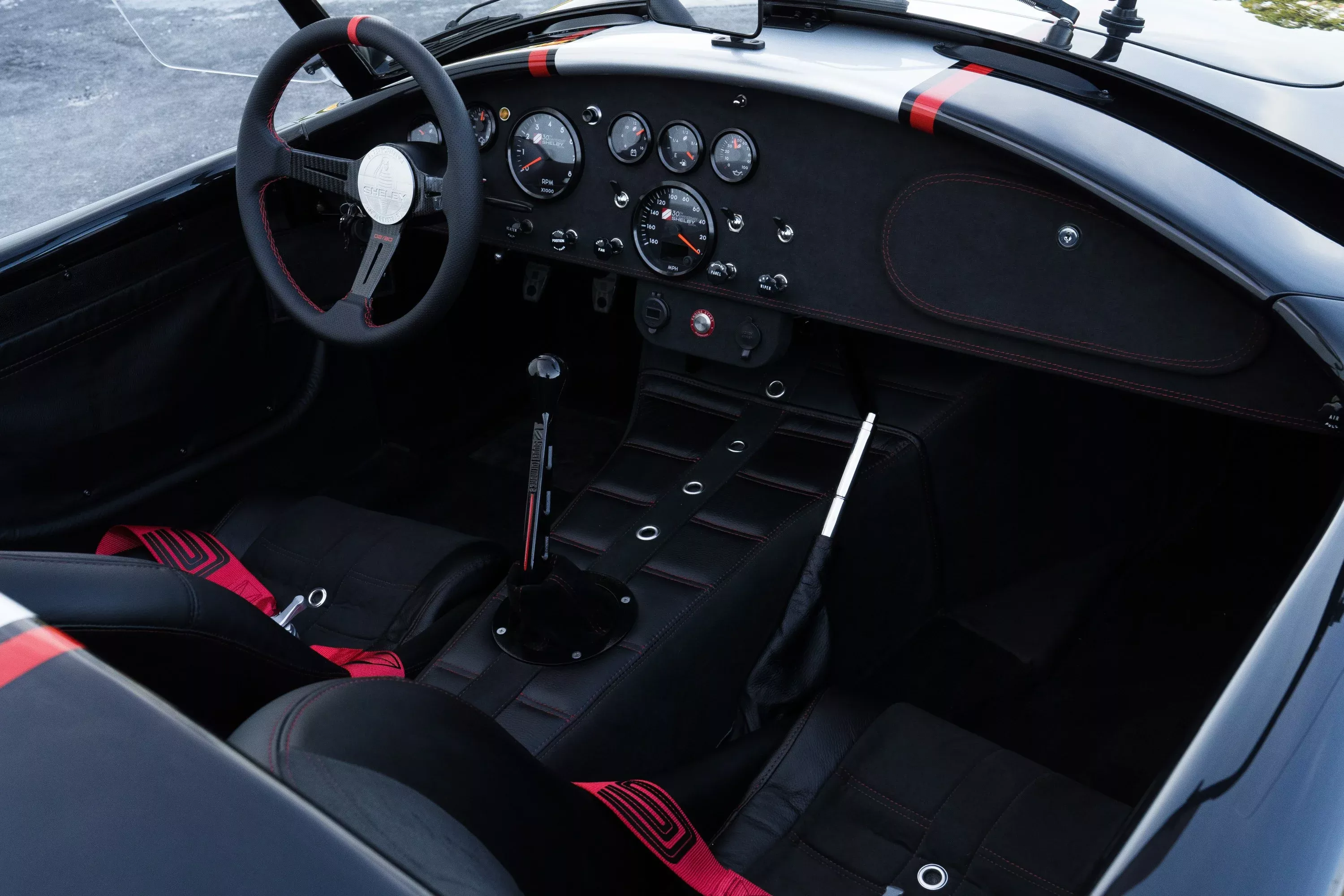

  • 30th anniversary electronic gauge package

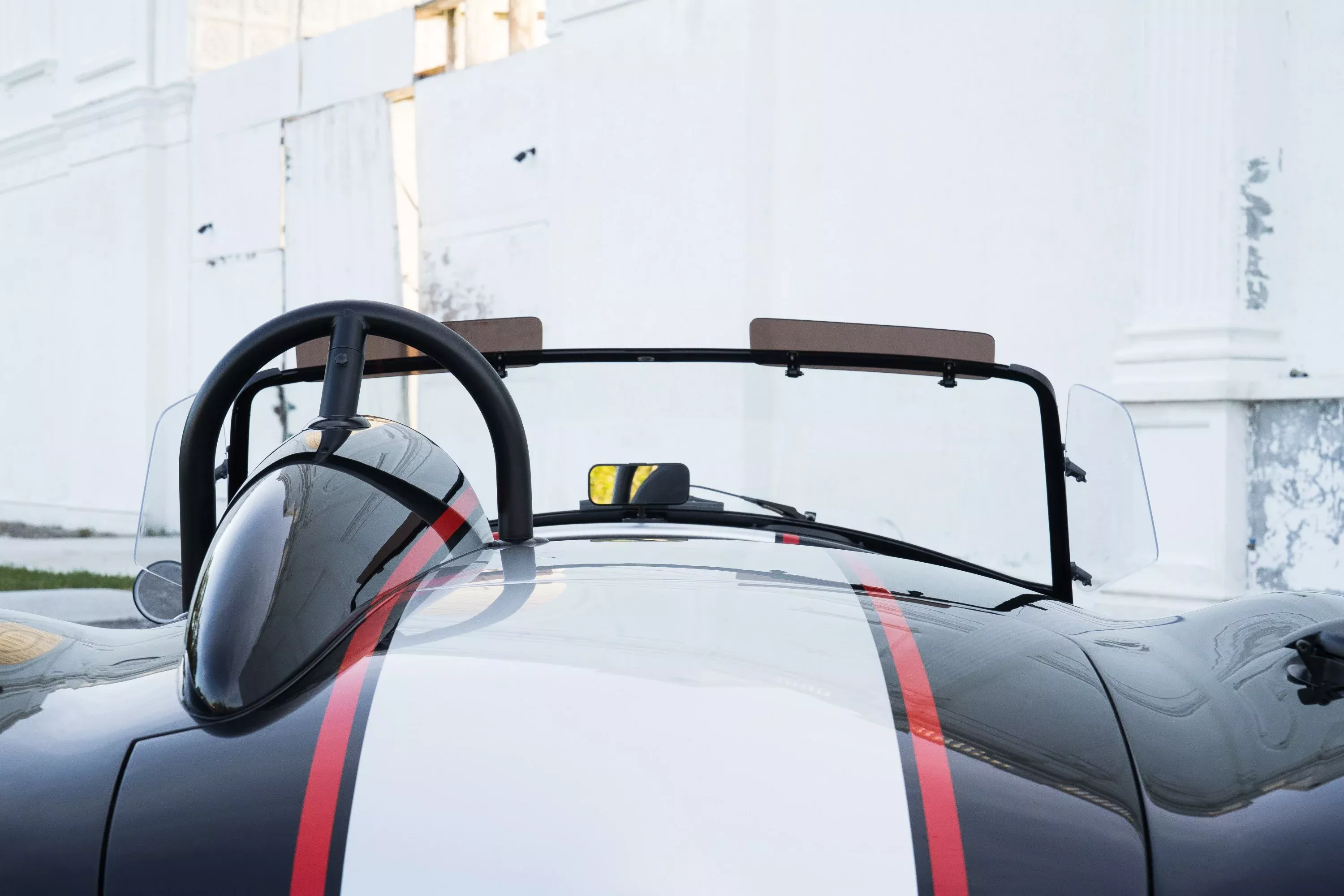

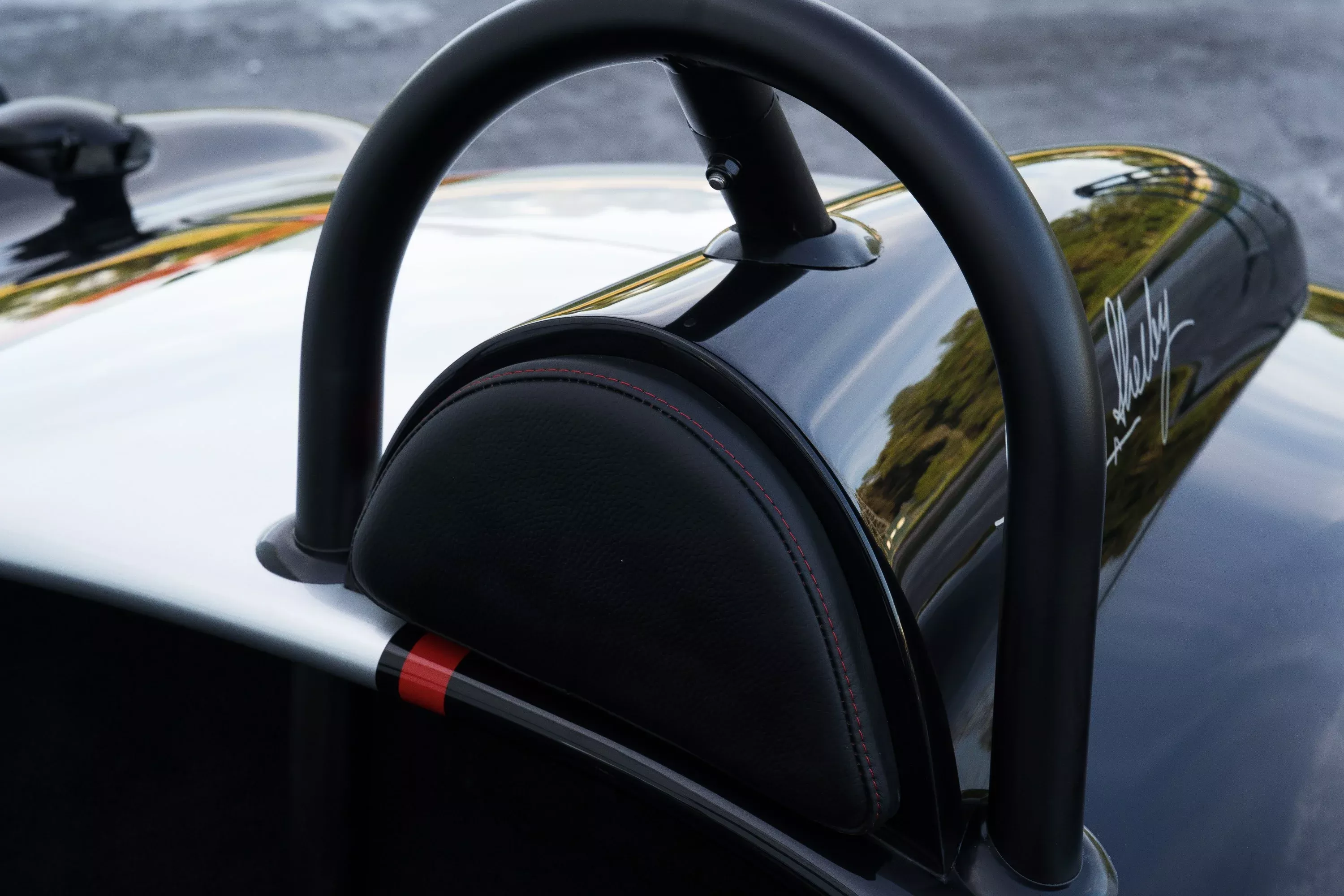

  • Stainless steel roll bar, chassis mounted

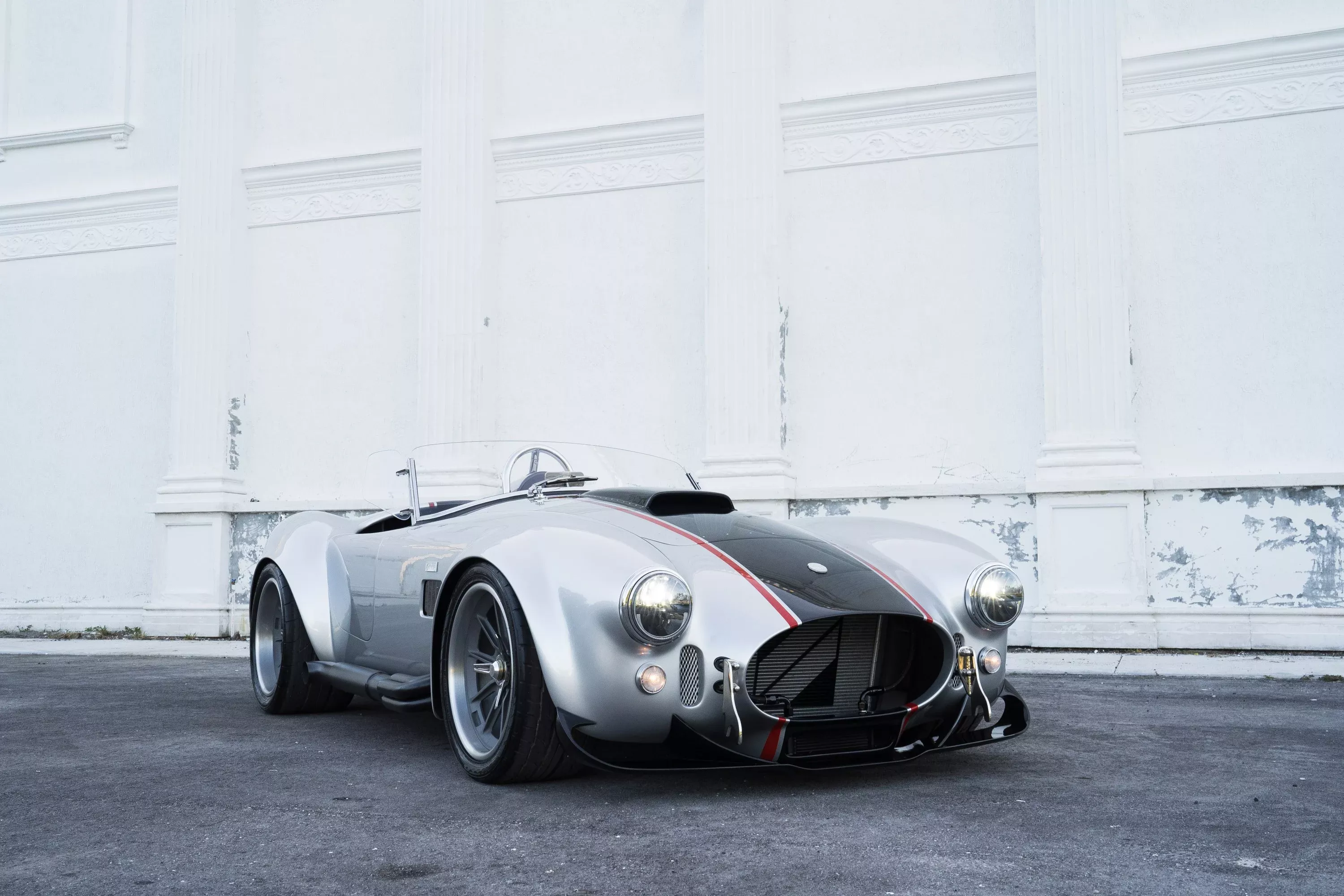

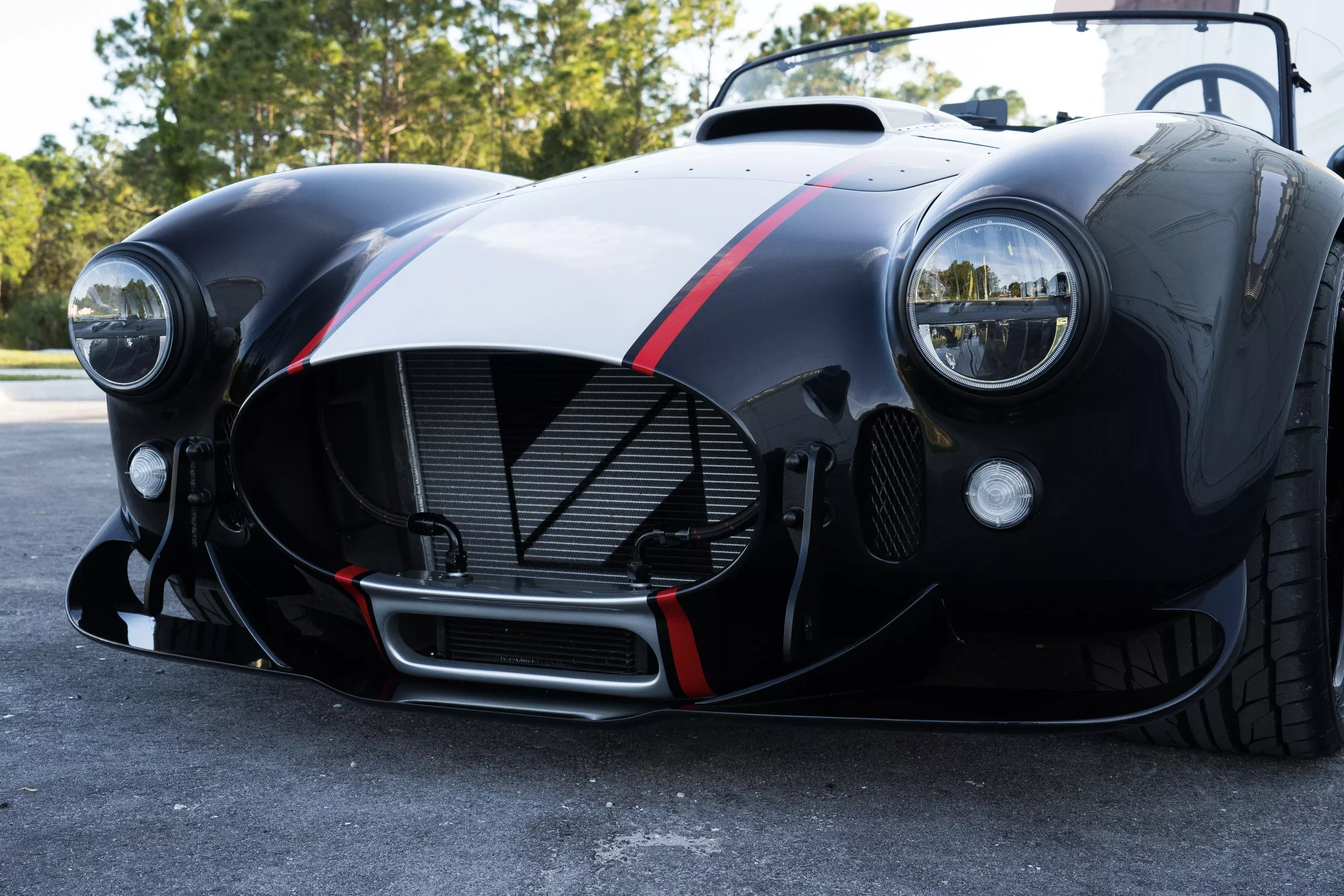

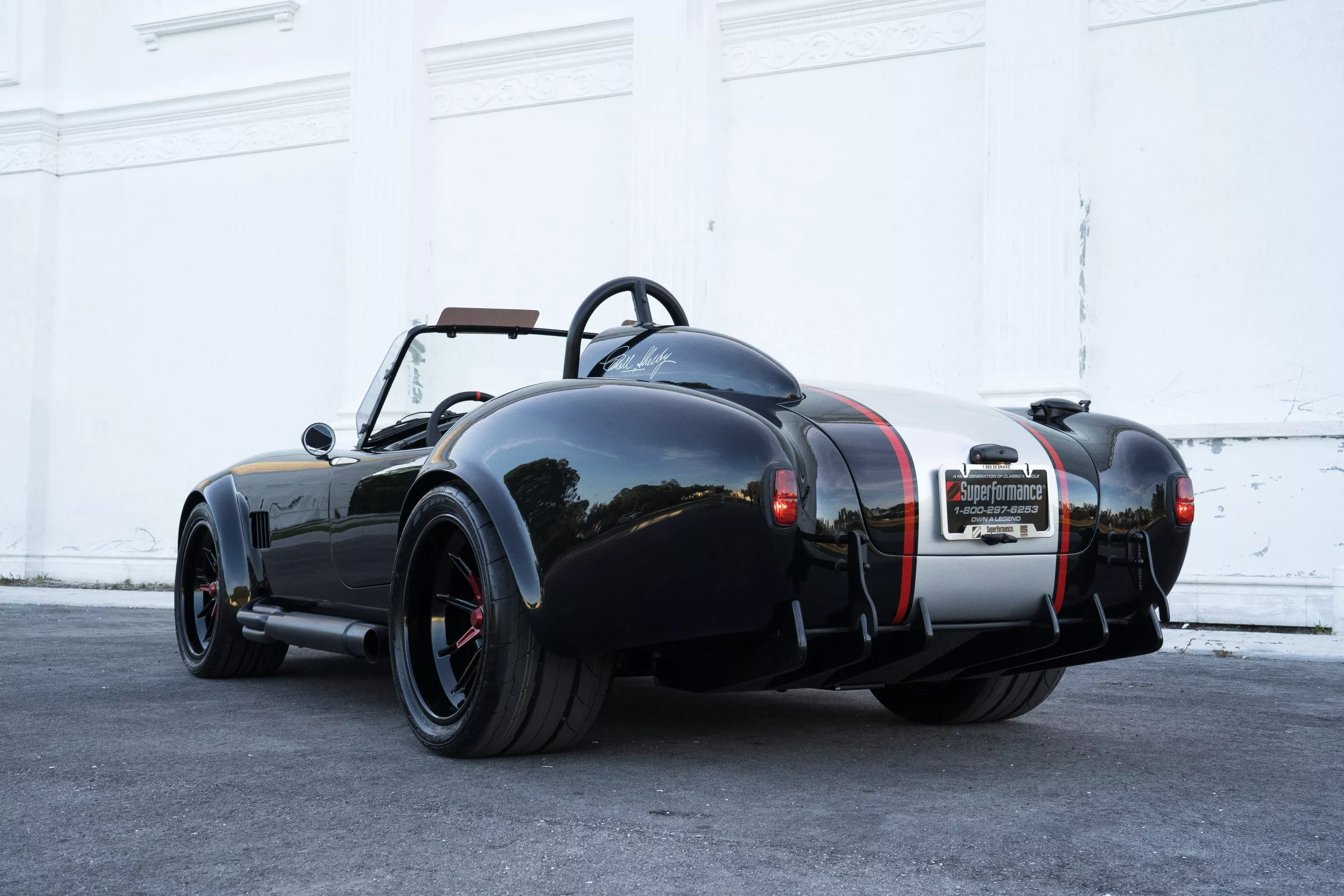

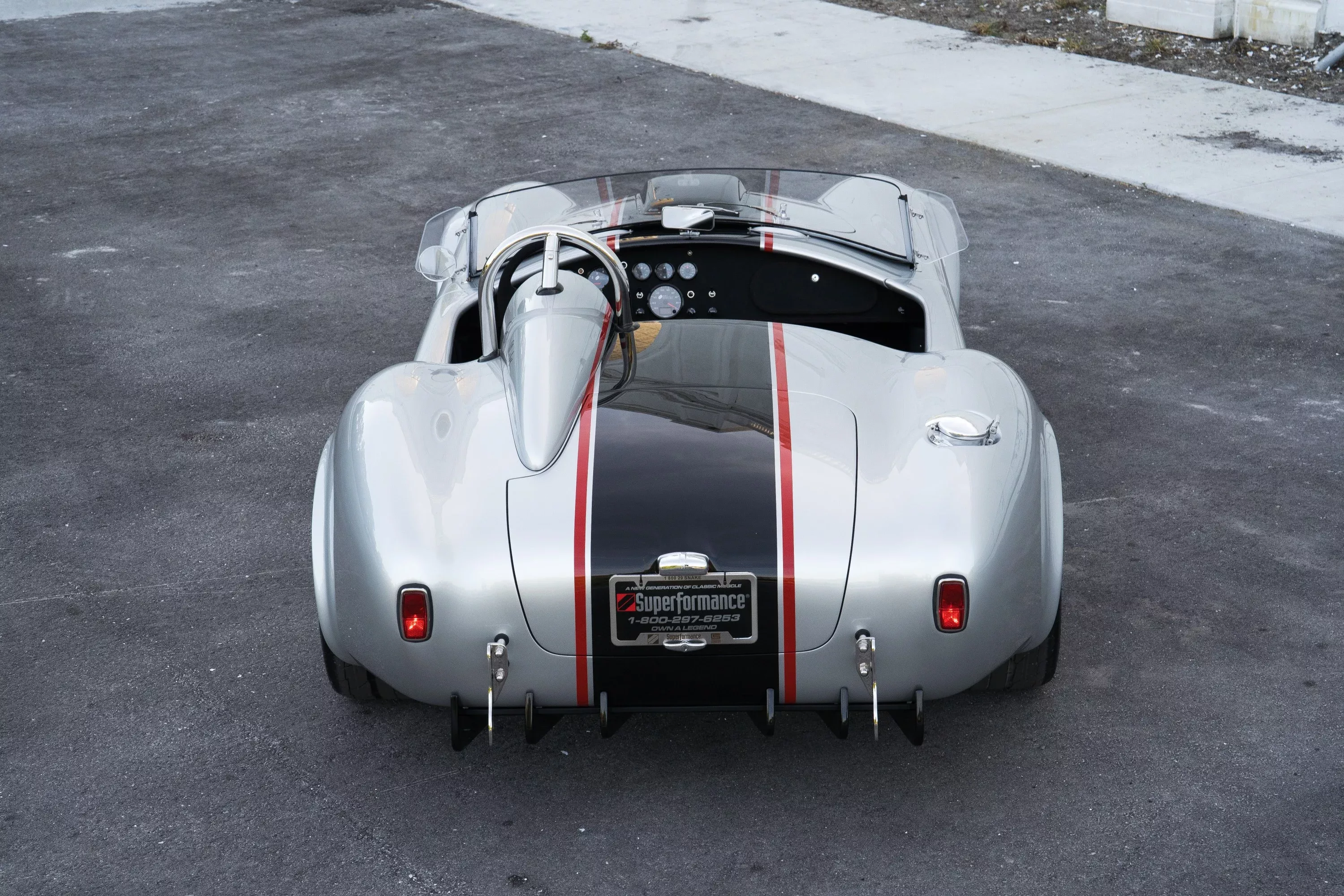

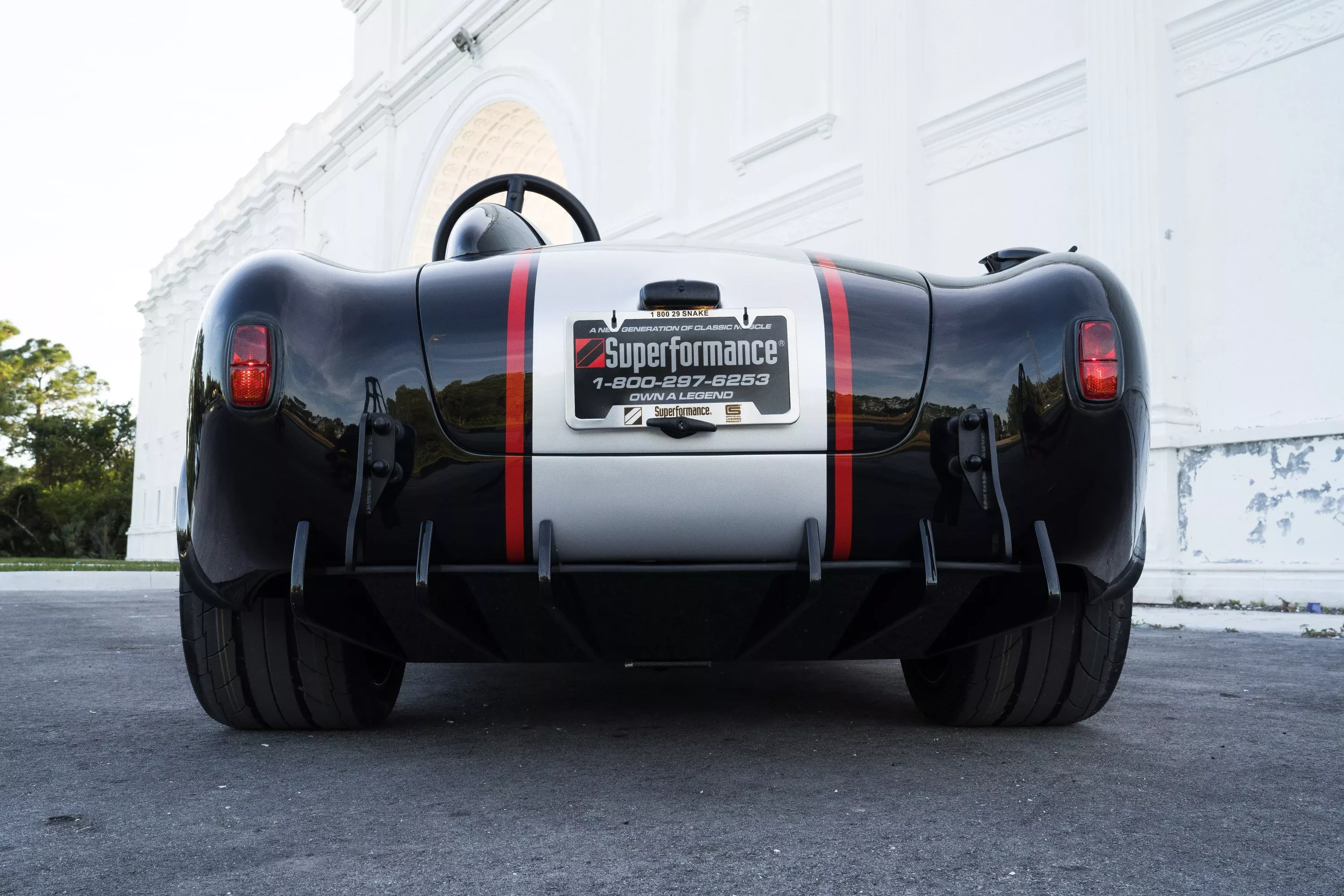

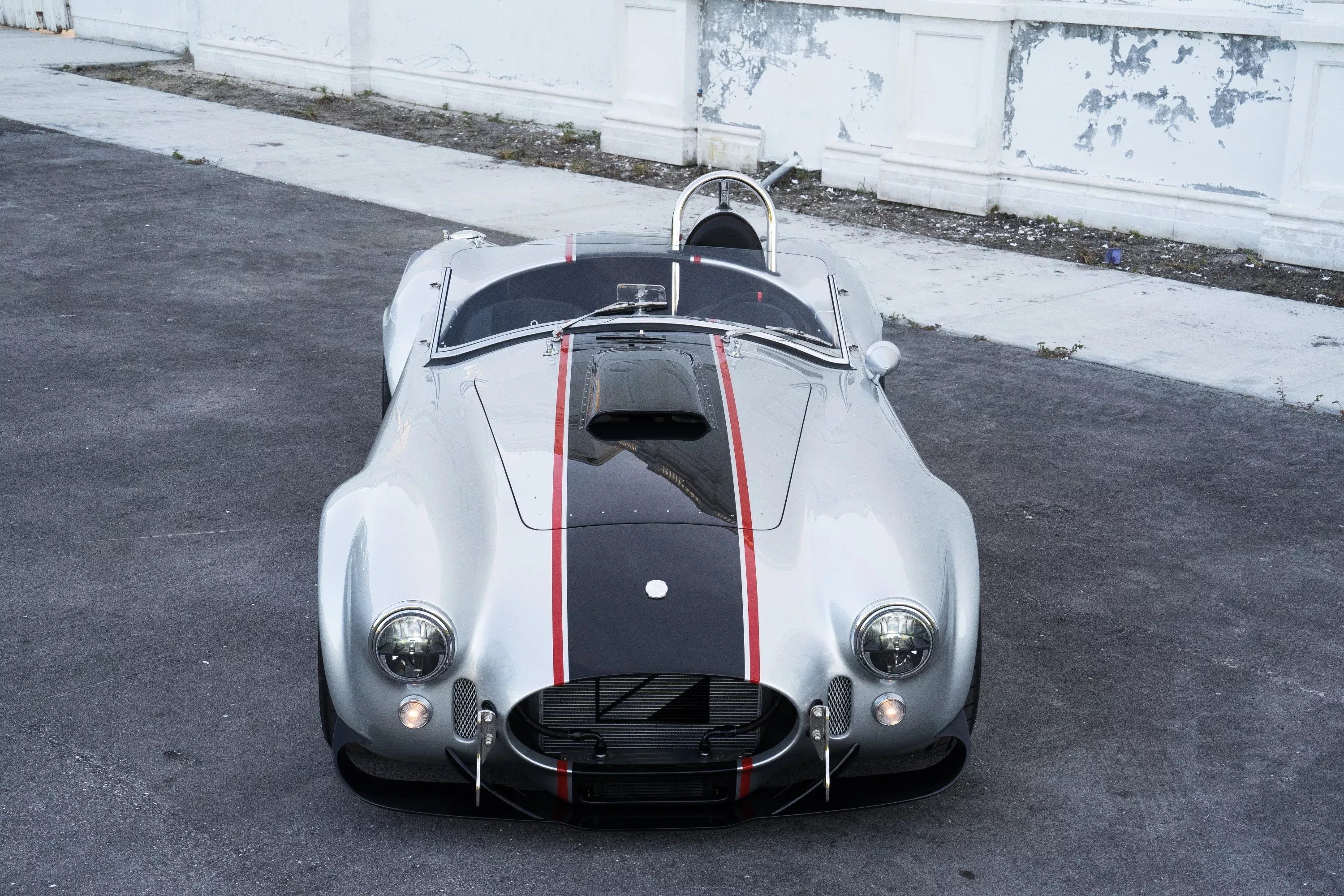

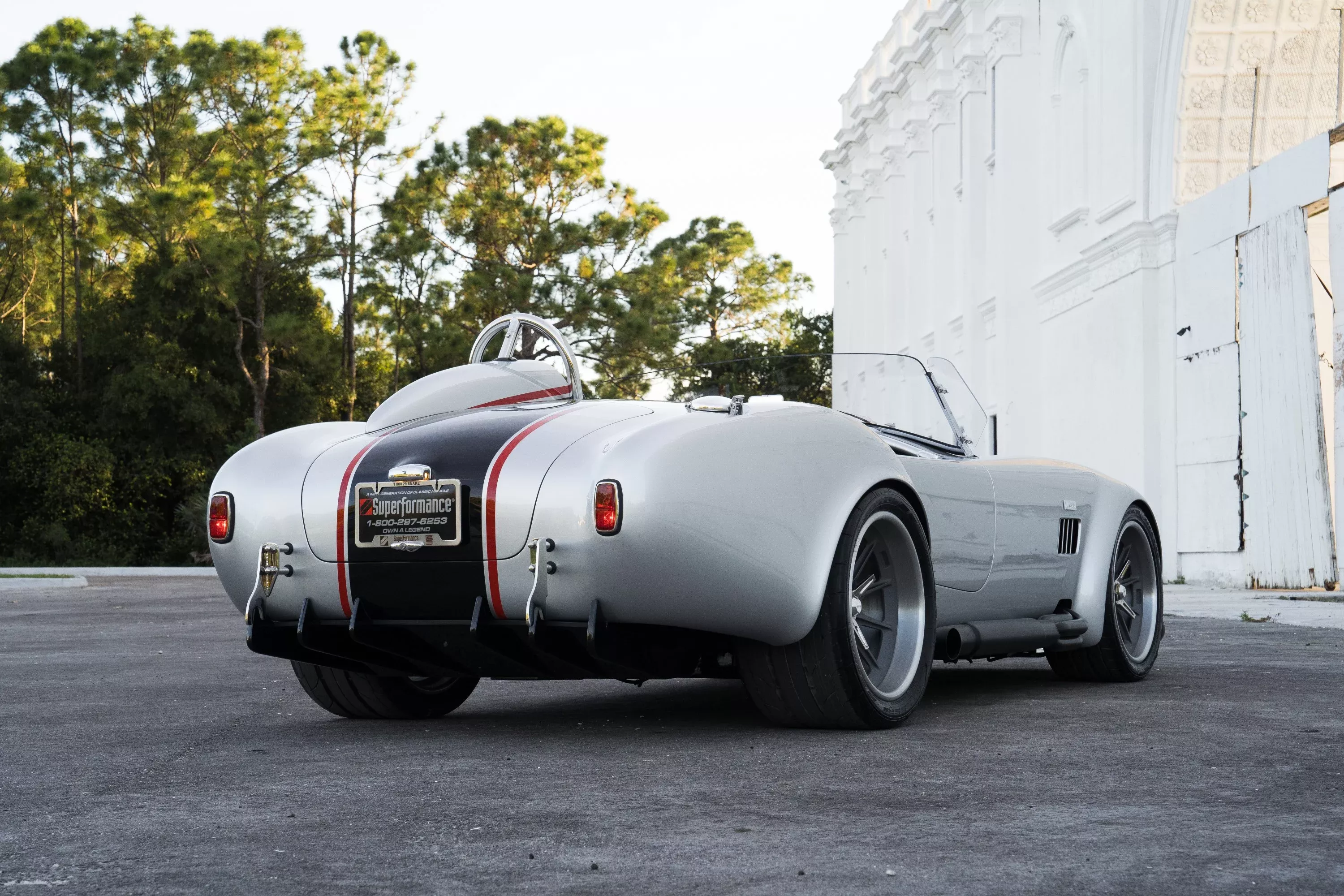

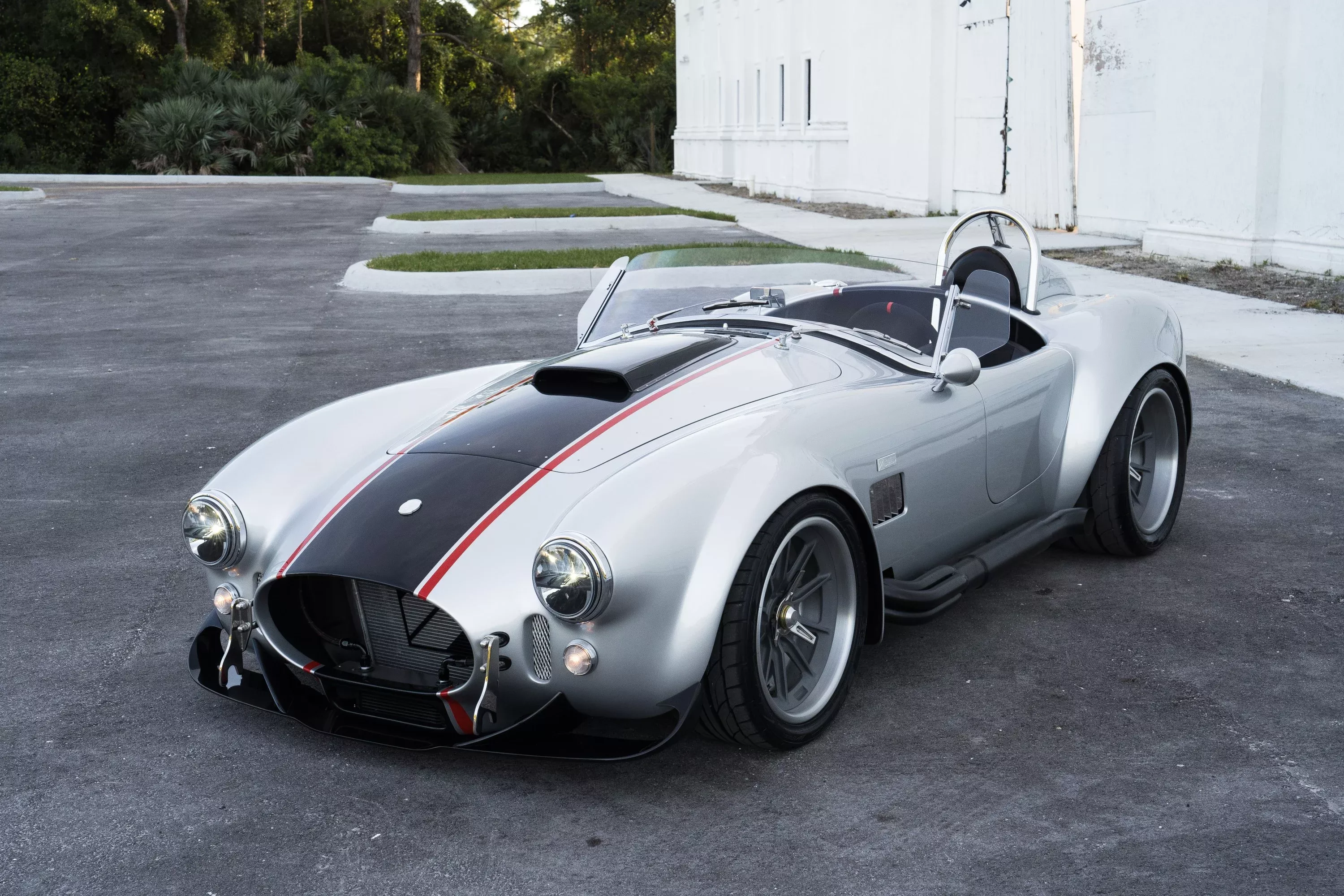

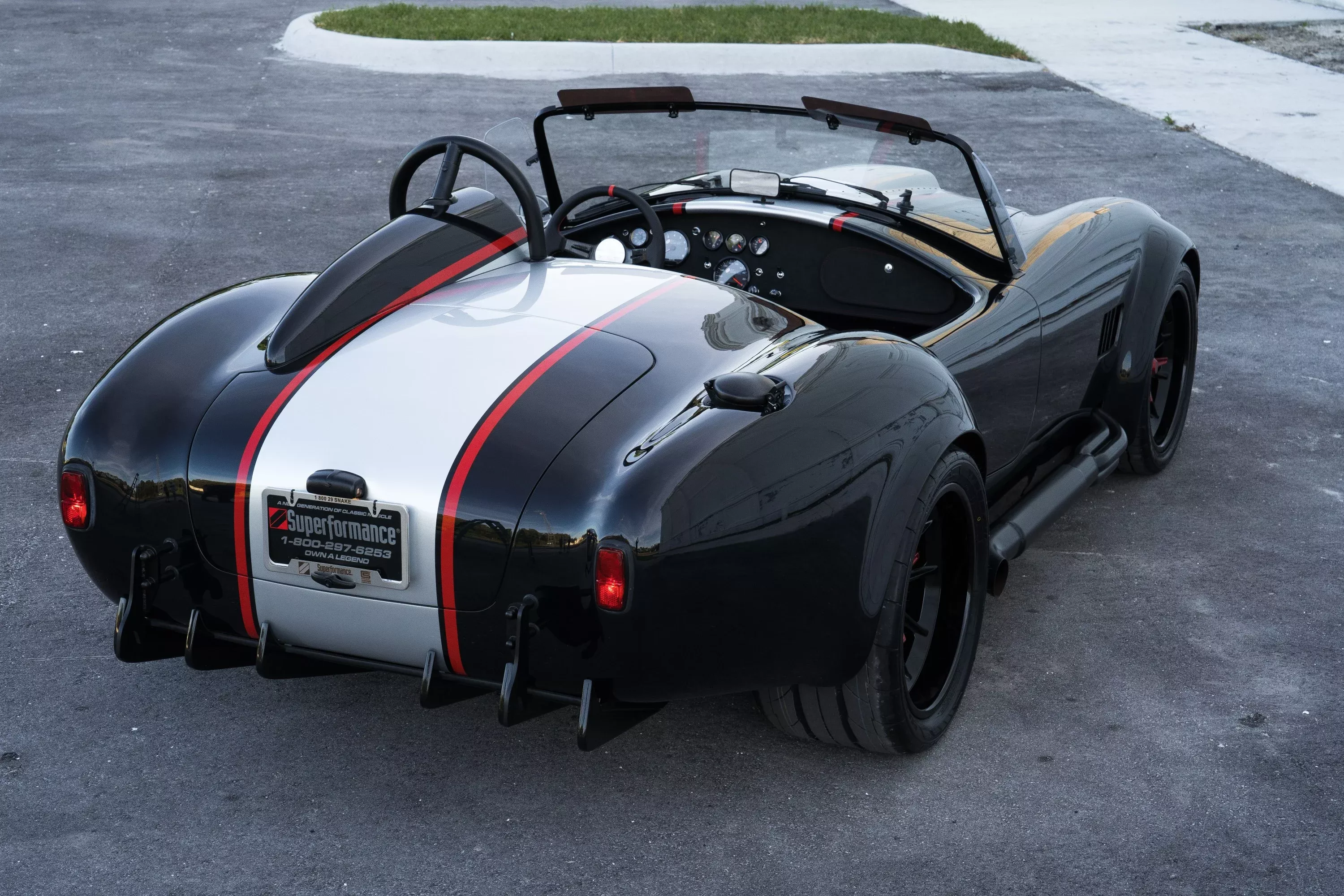

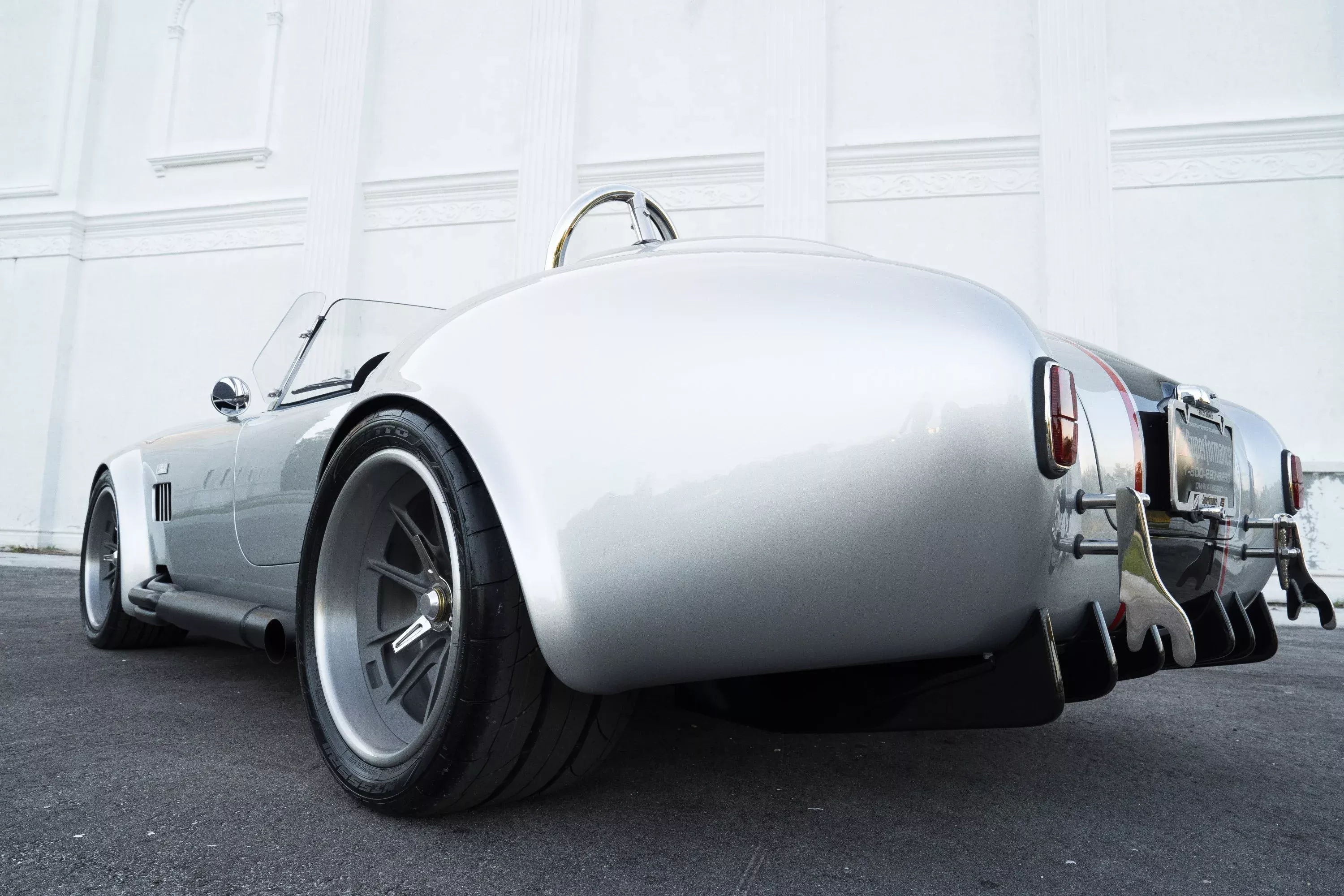

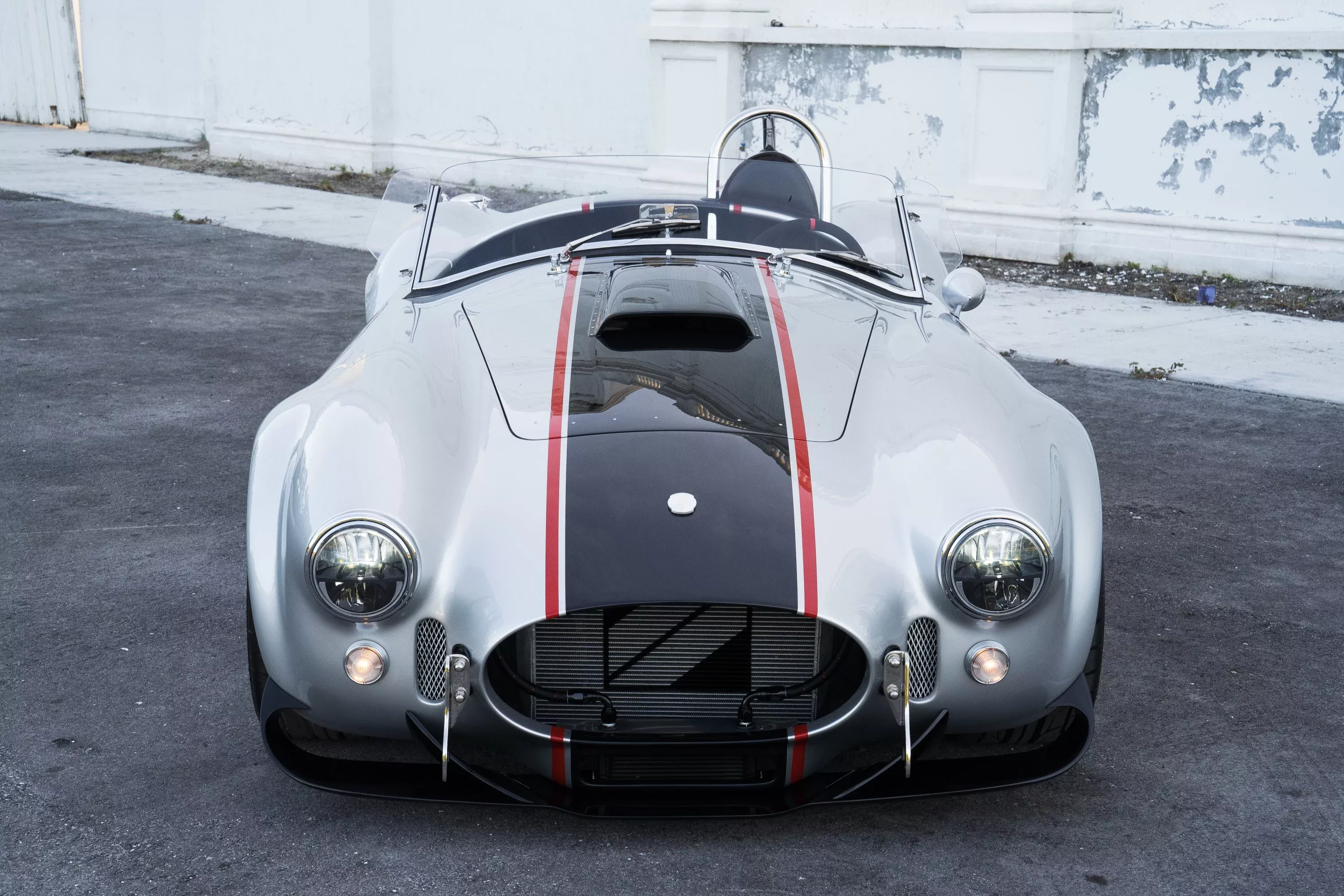

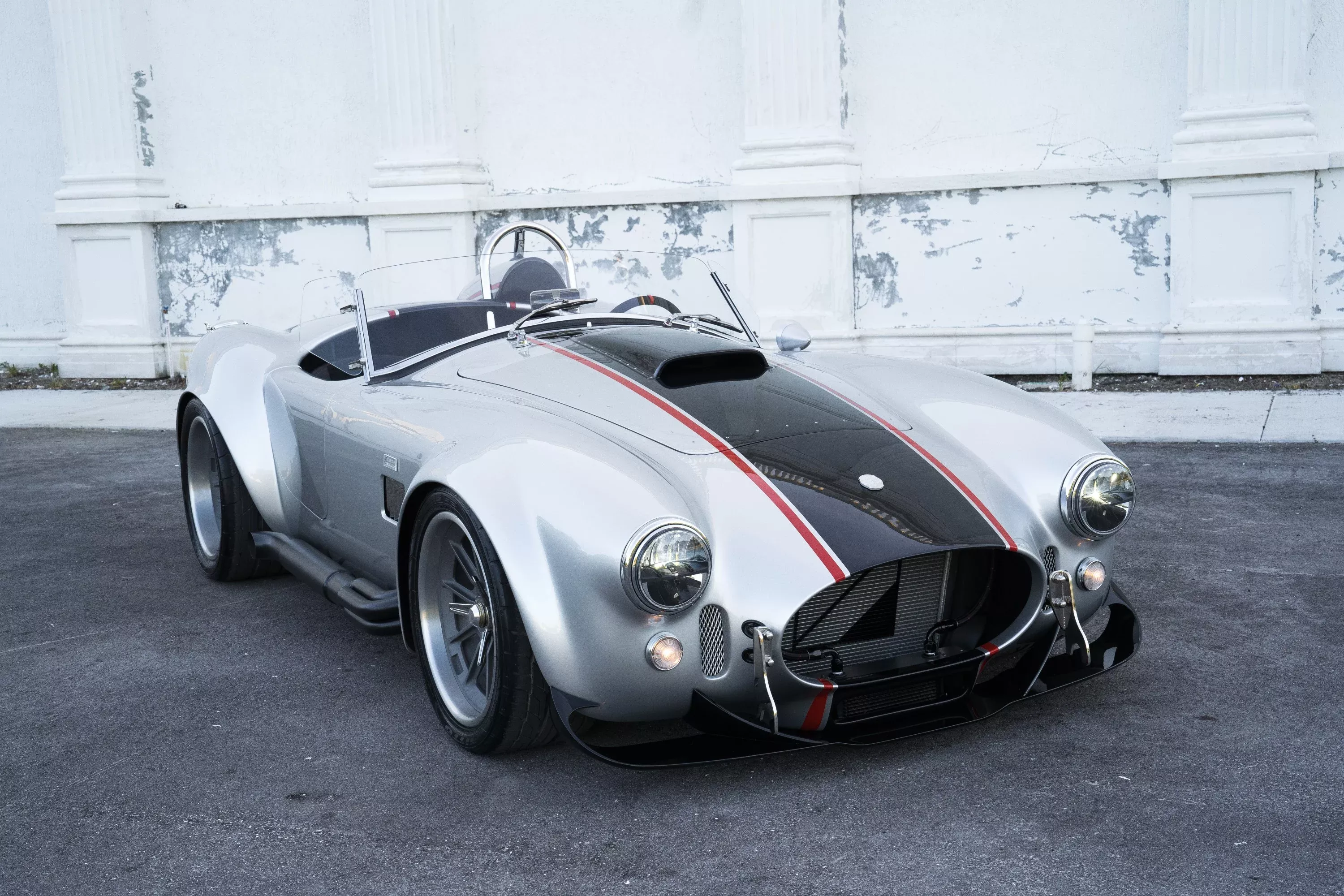

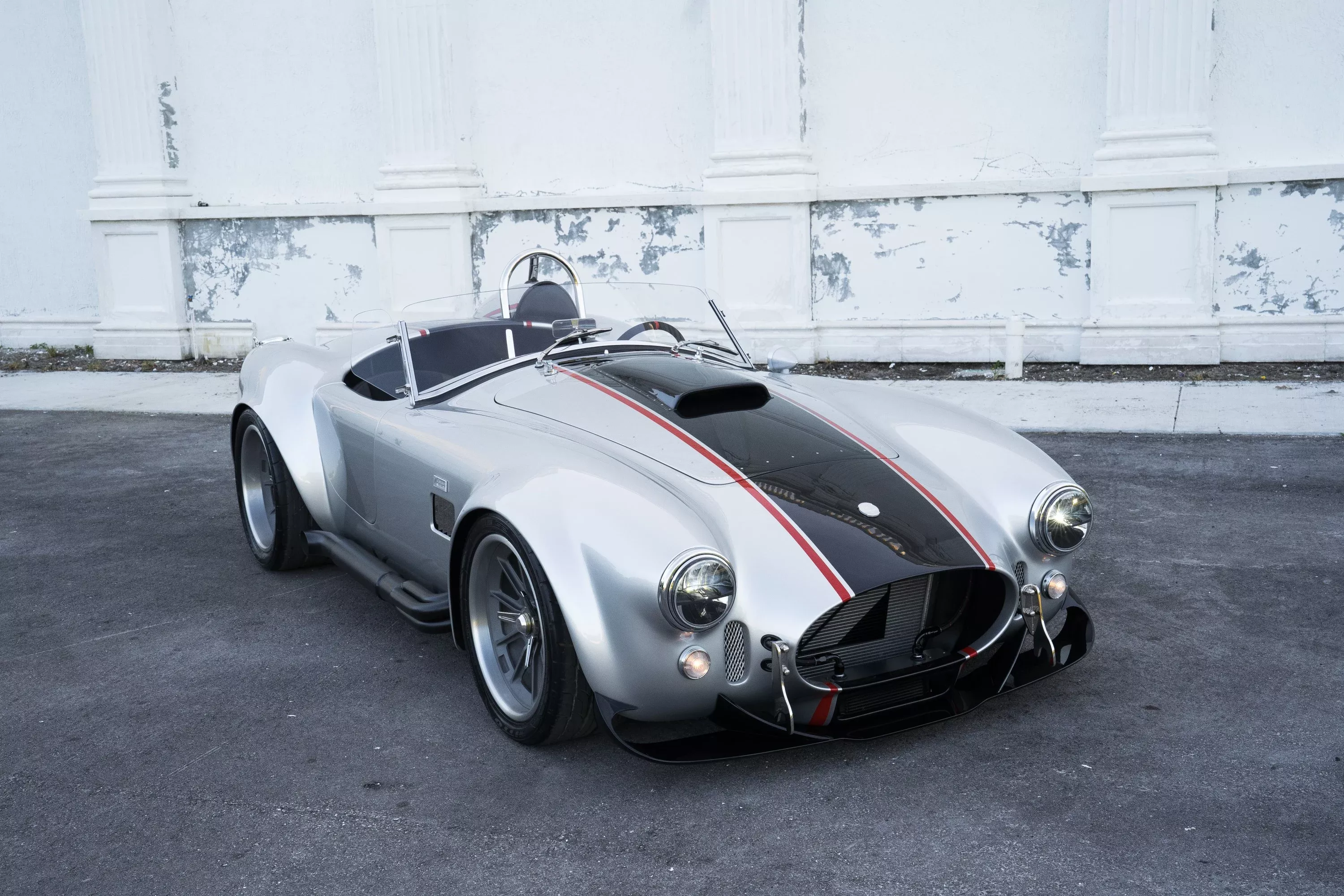

  • Newly designed MKIII body with front splitter and rear diffuser

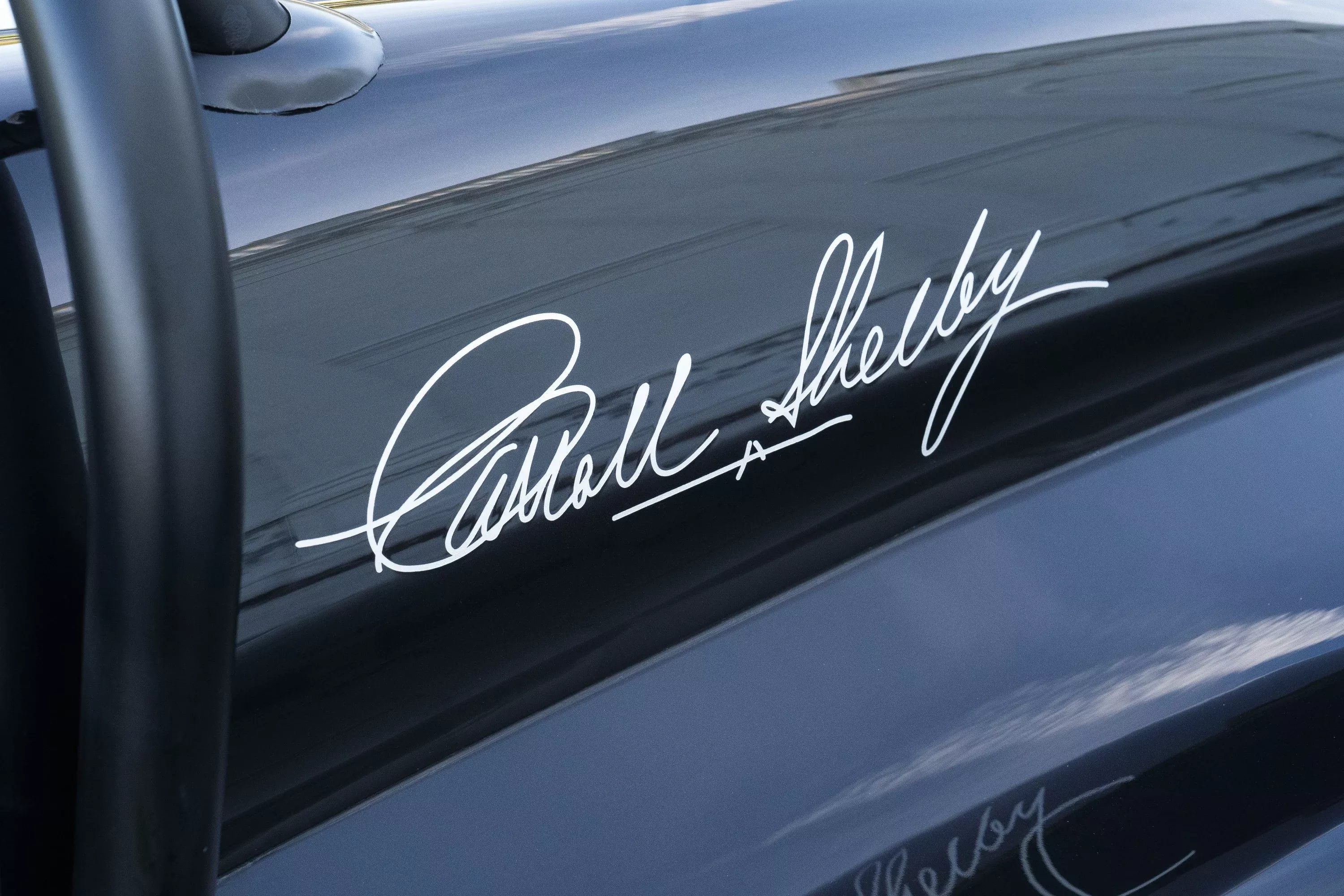

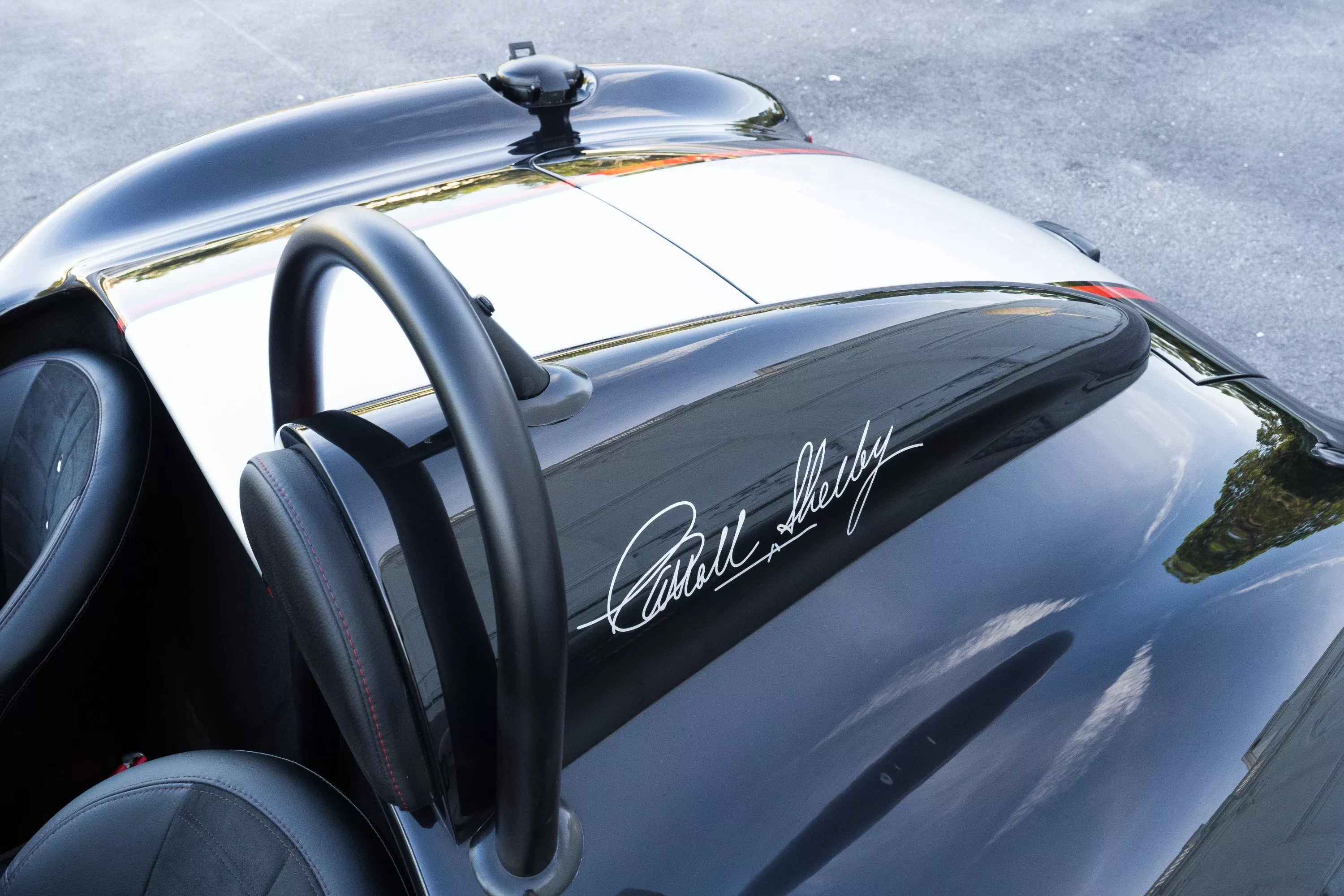

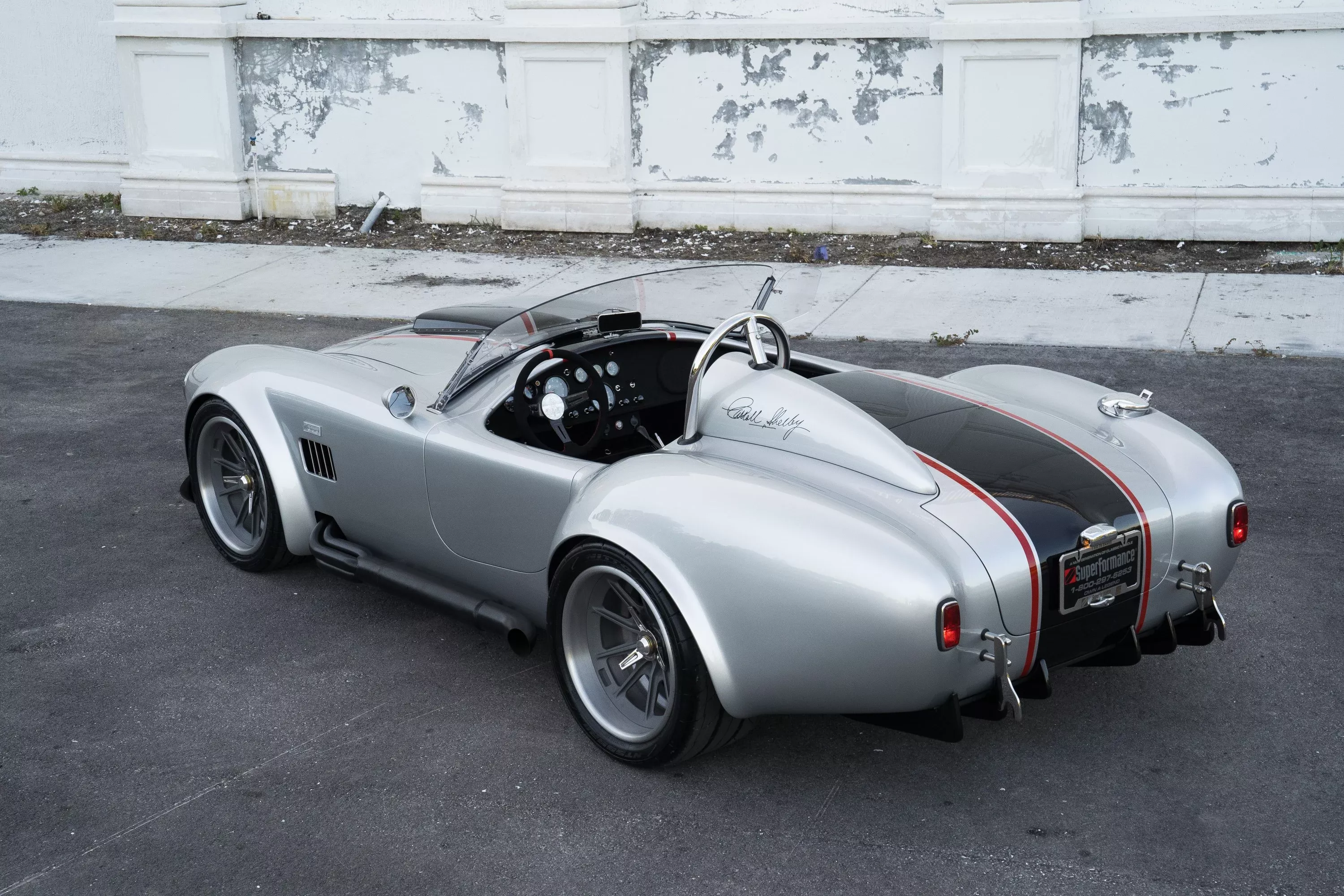

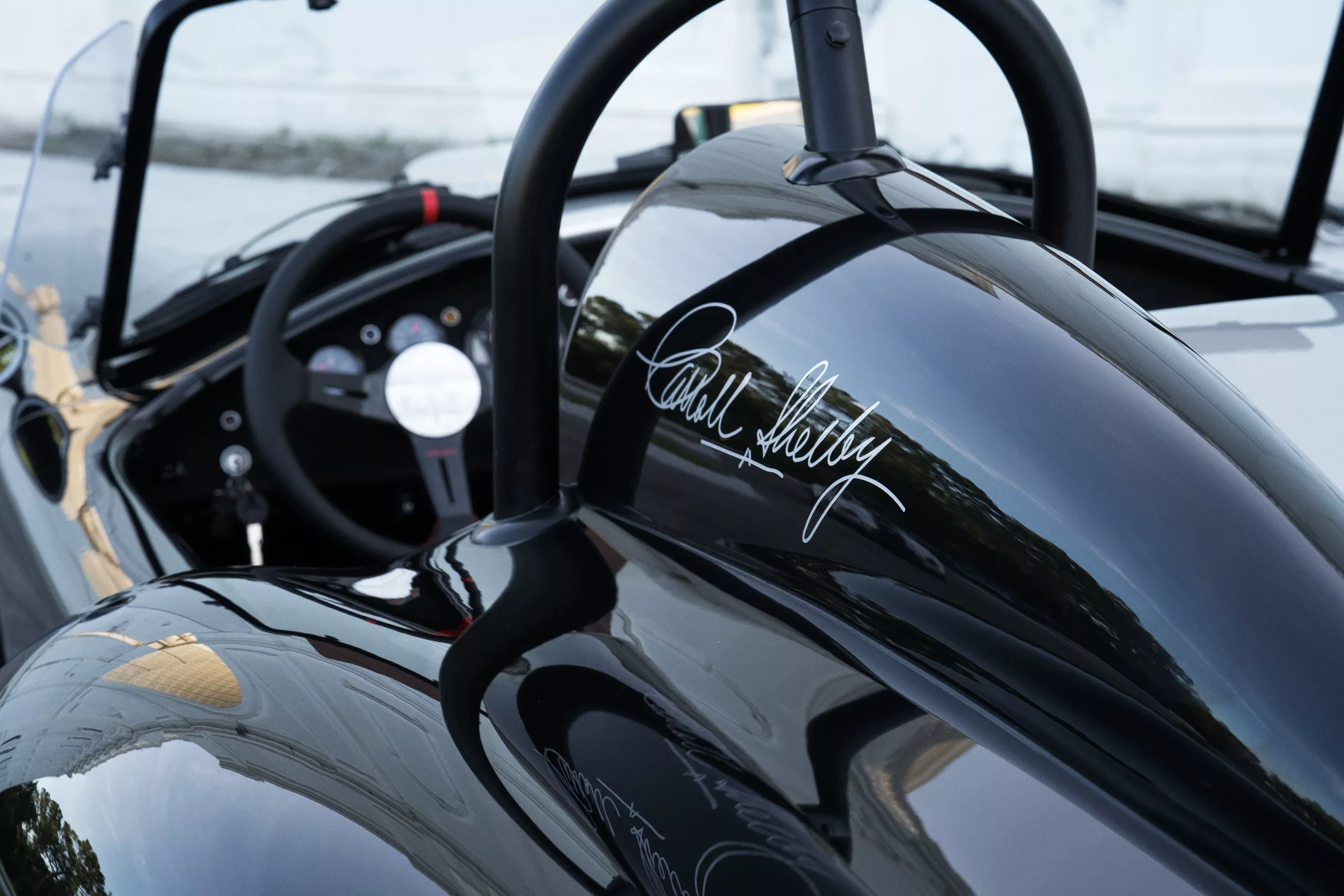

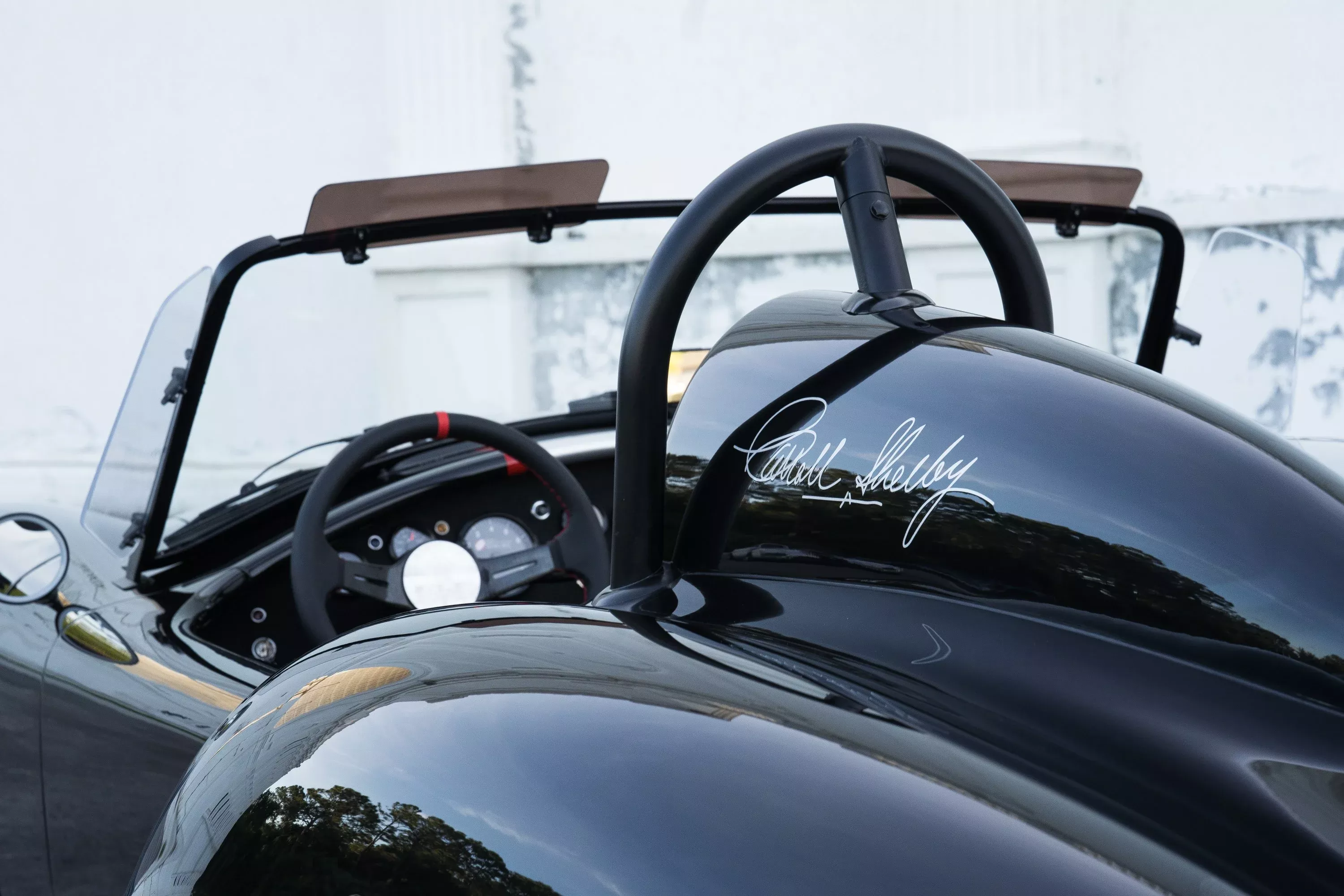

  • Carroll Shelbys name inscribed into the integrated padded helmet diffuser

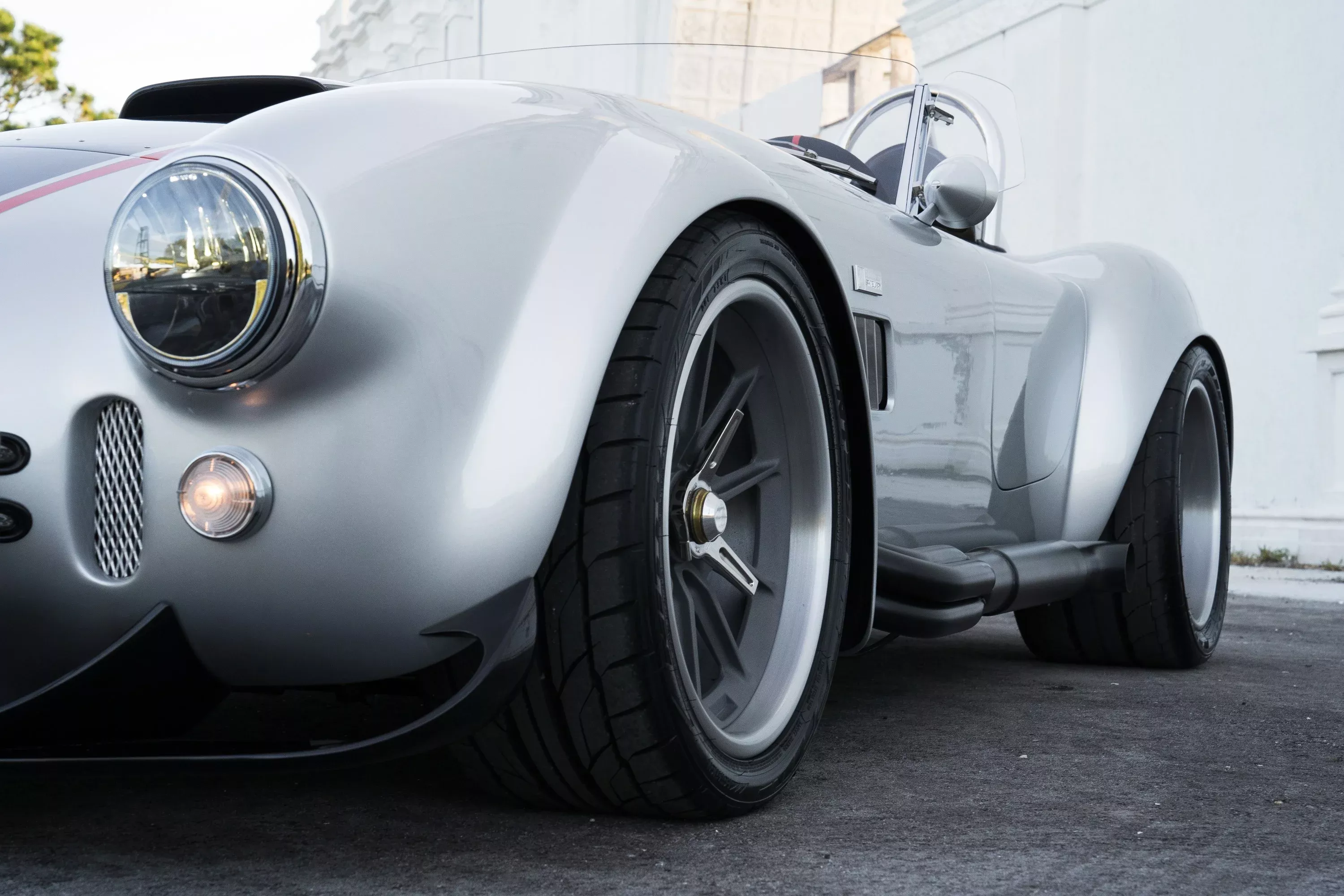

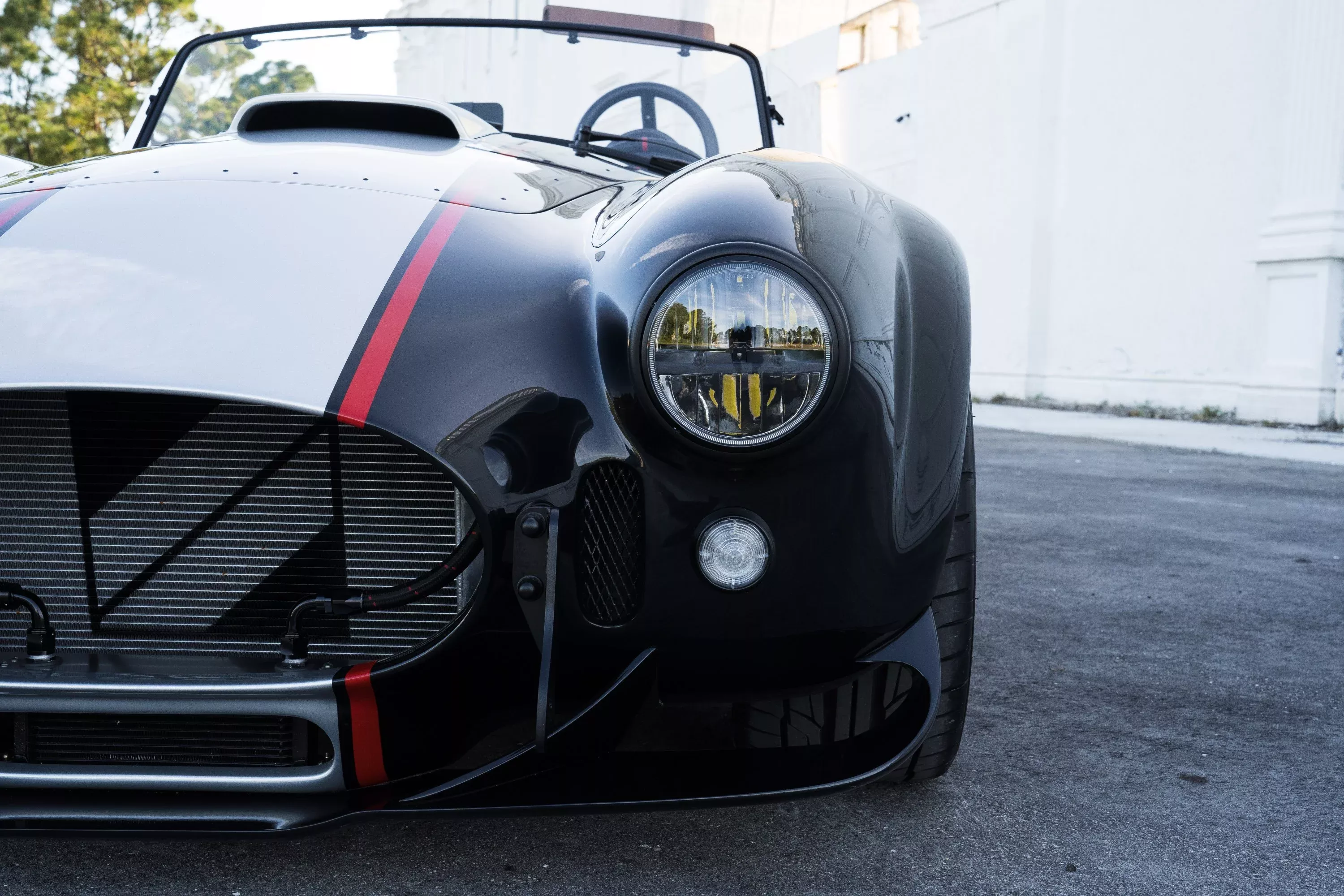

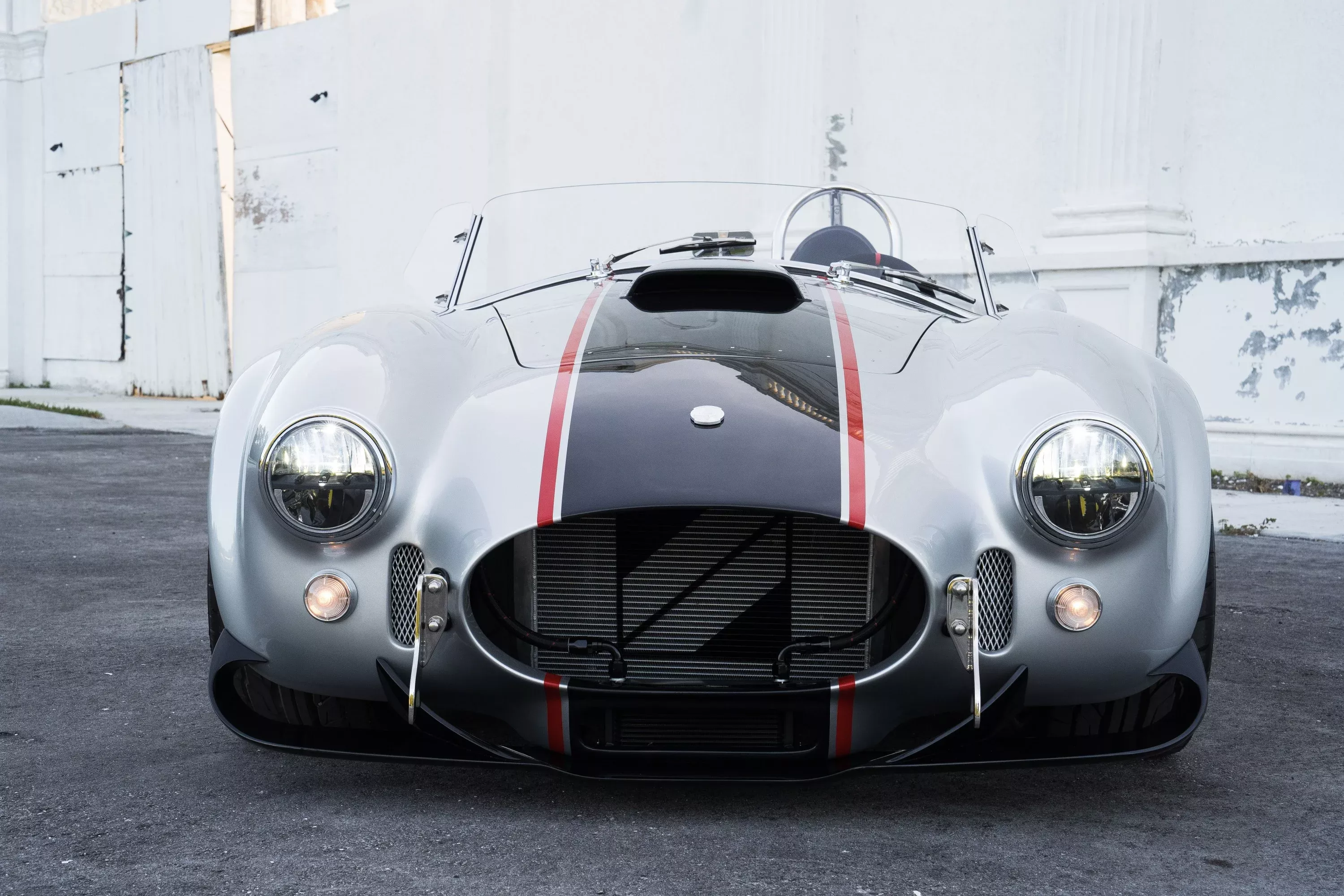

  • LED headlights
  • Commemorative 30th anniversary badging interior and exterior
  • Shelby issued MCO Certificate
  • Shelby CSX10000 Sequence number

Options

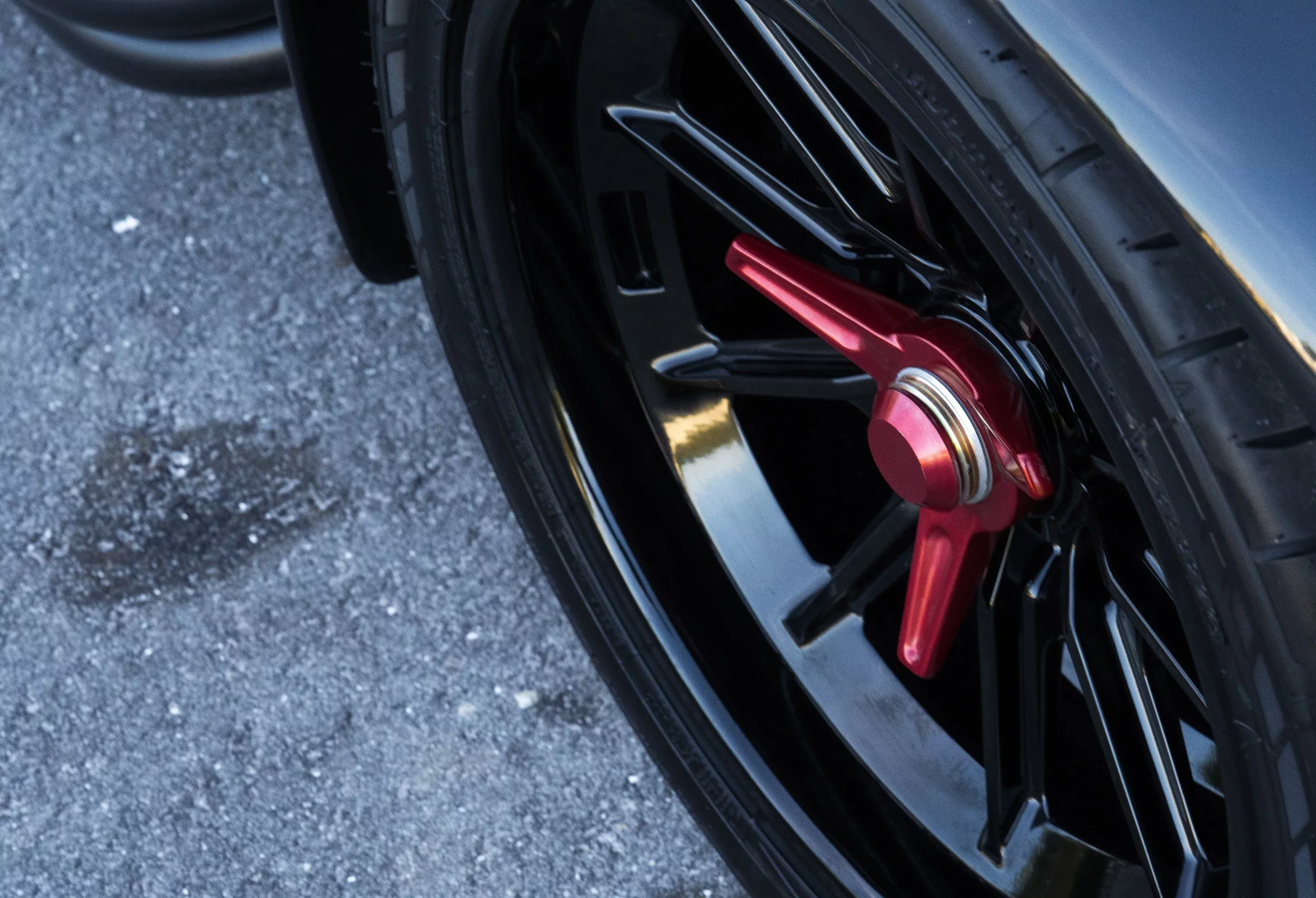

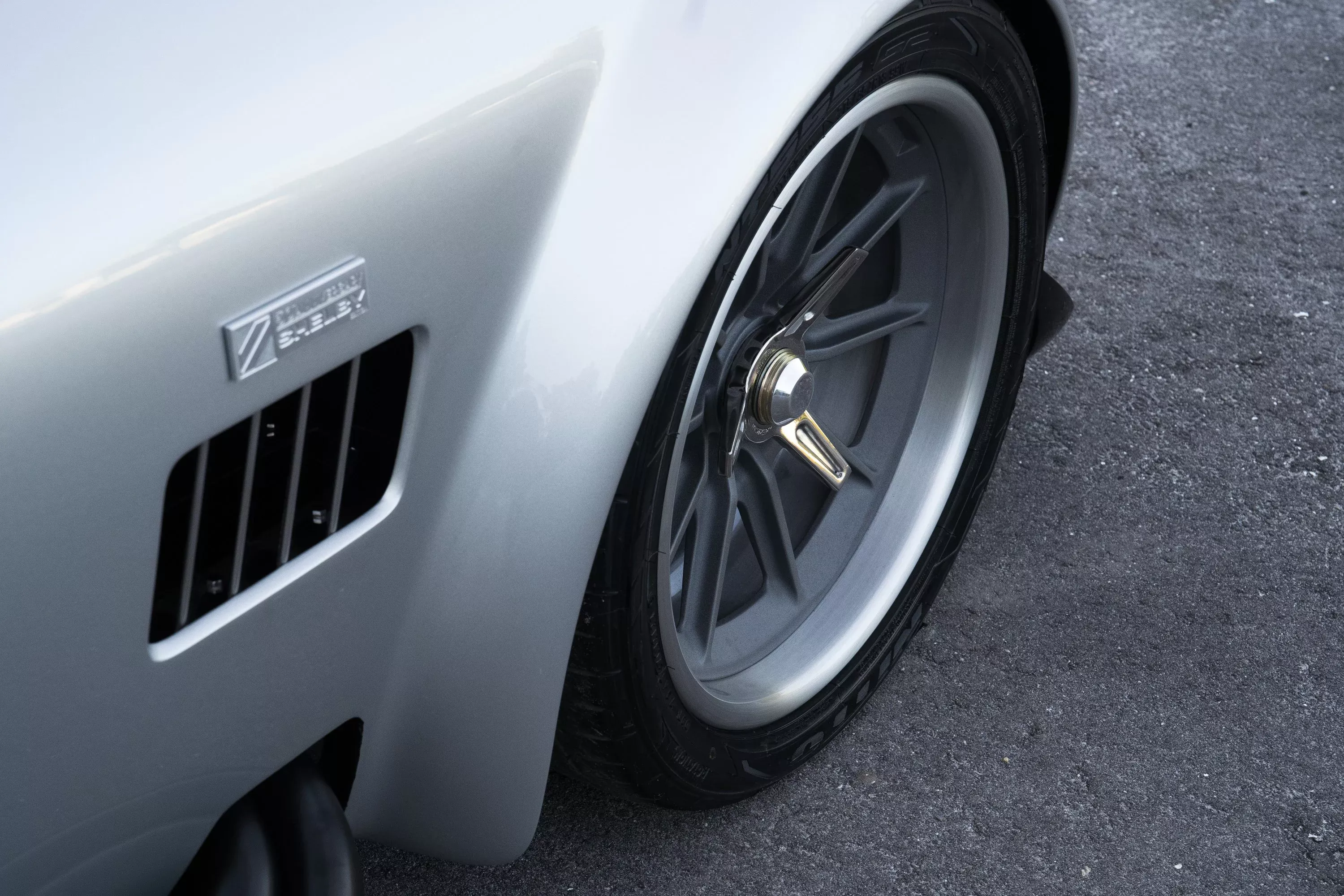

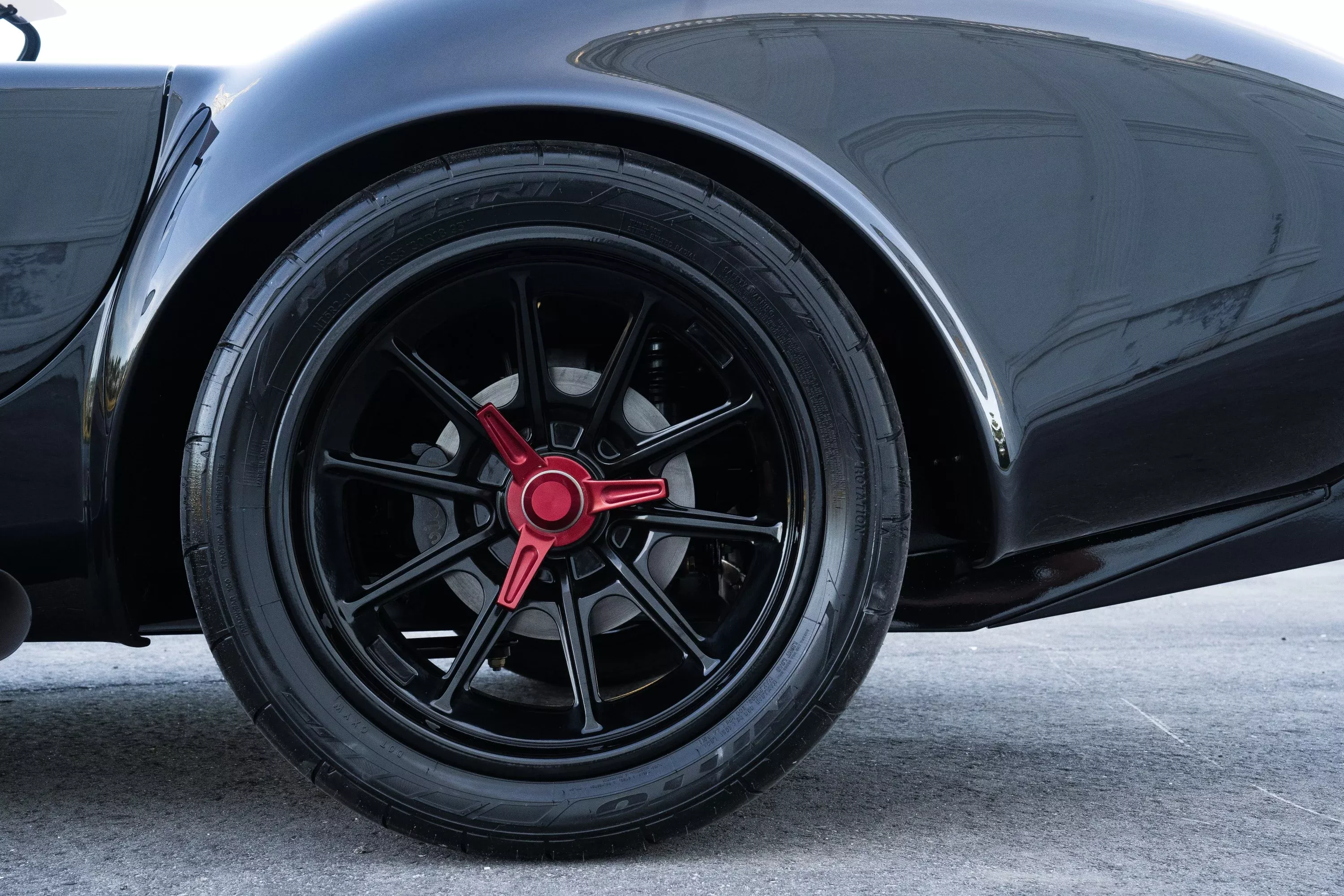

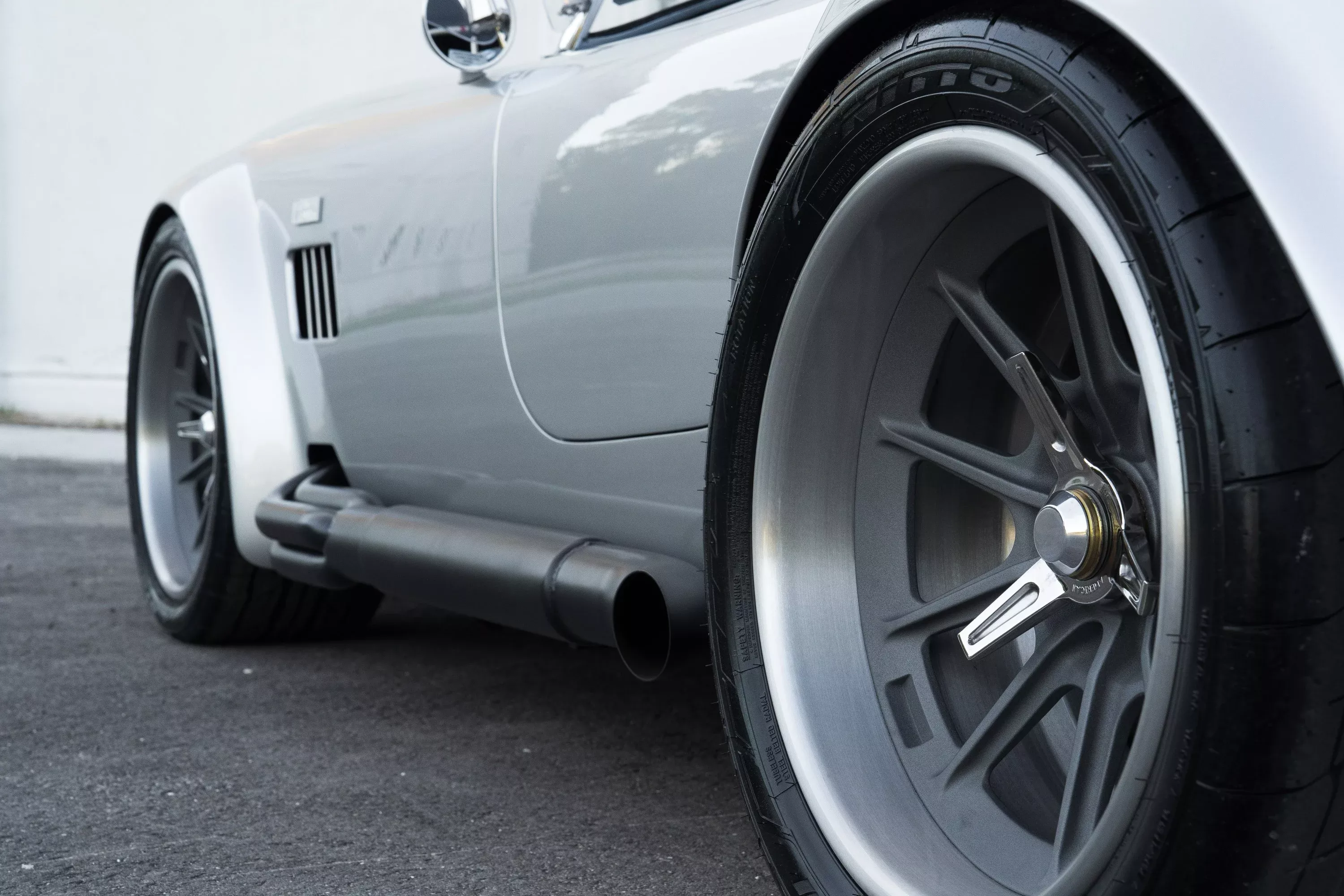

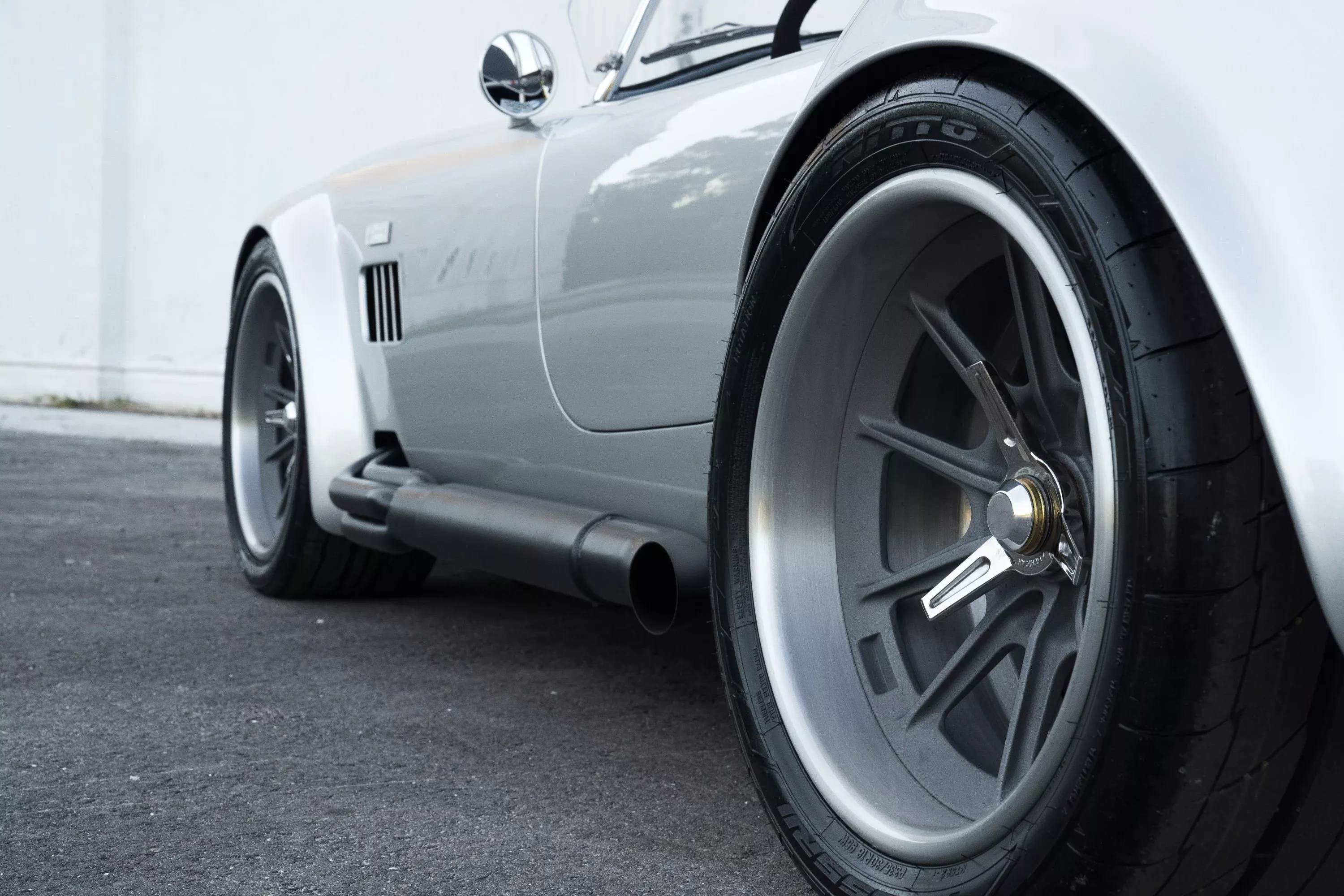

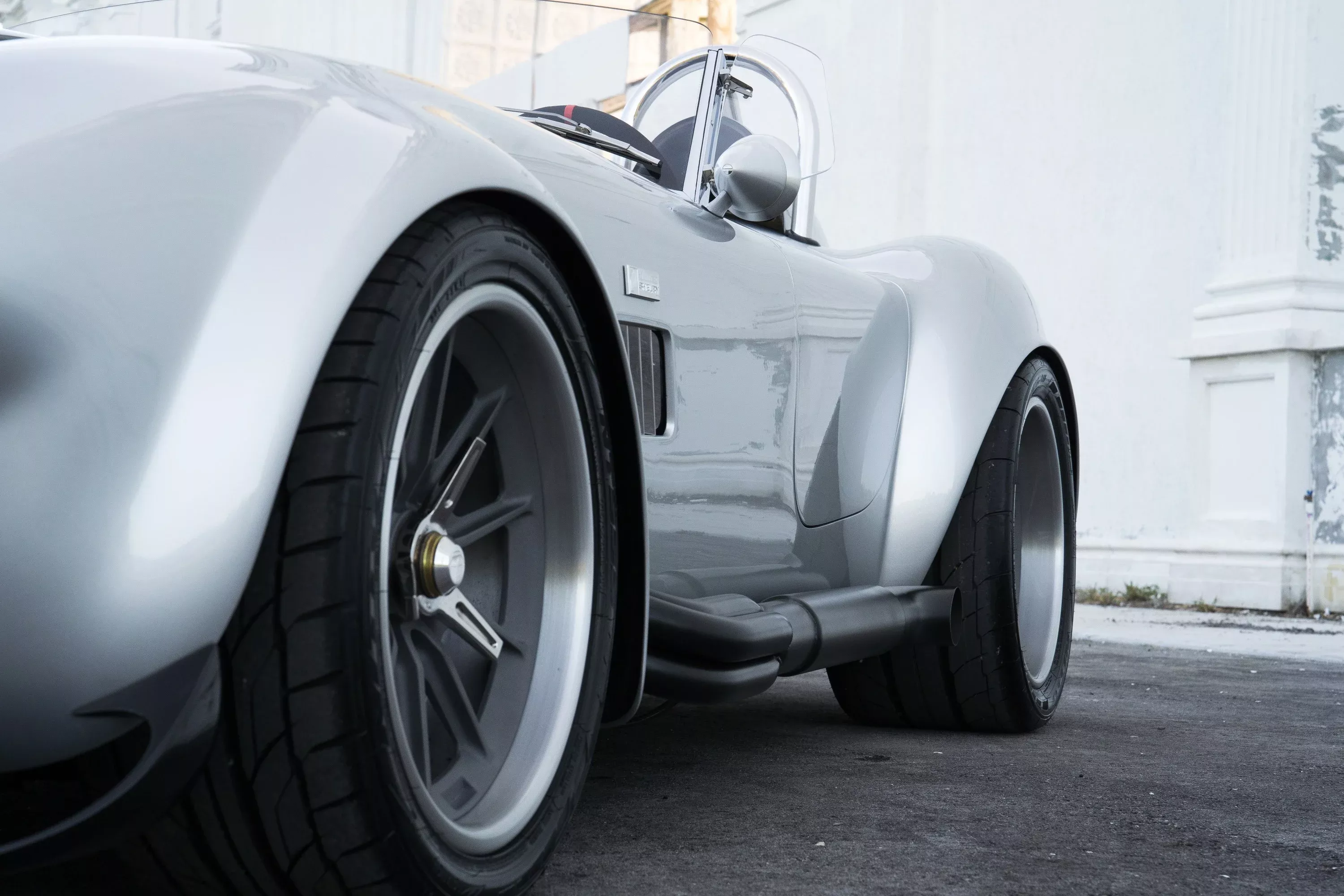

  • 18" Aluminum pin drive “Halibrand” style wheels (knock – offs) with tires
  • Original style side pipes and headers to accommodate Ford based V8 engine (custom dark silver coating)
  • Custom "Wilwood Big Brake Upgrade" brakes
  • Custom branded belts
  • Custom Floor mats and Wind Wings
  • Custom sway bars
  • Tonneau cover
  • Soft top and side screens

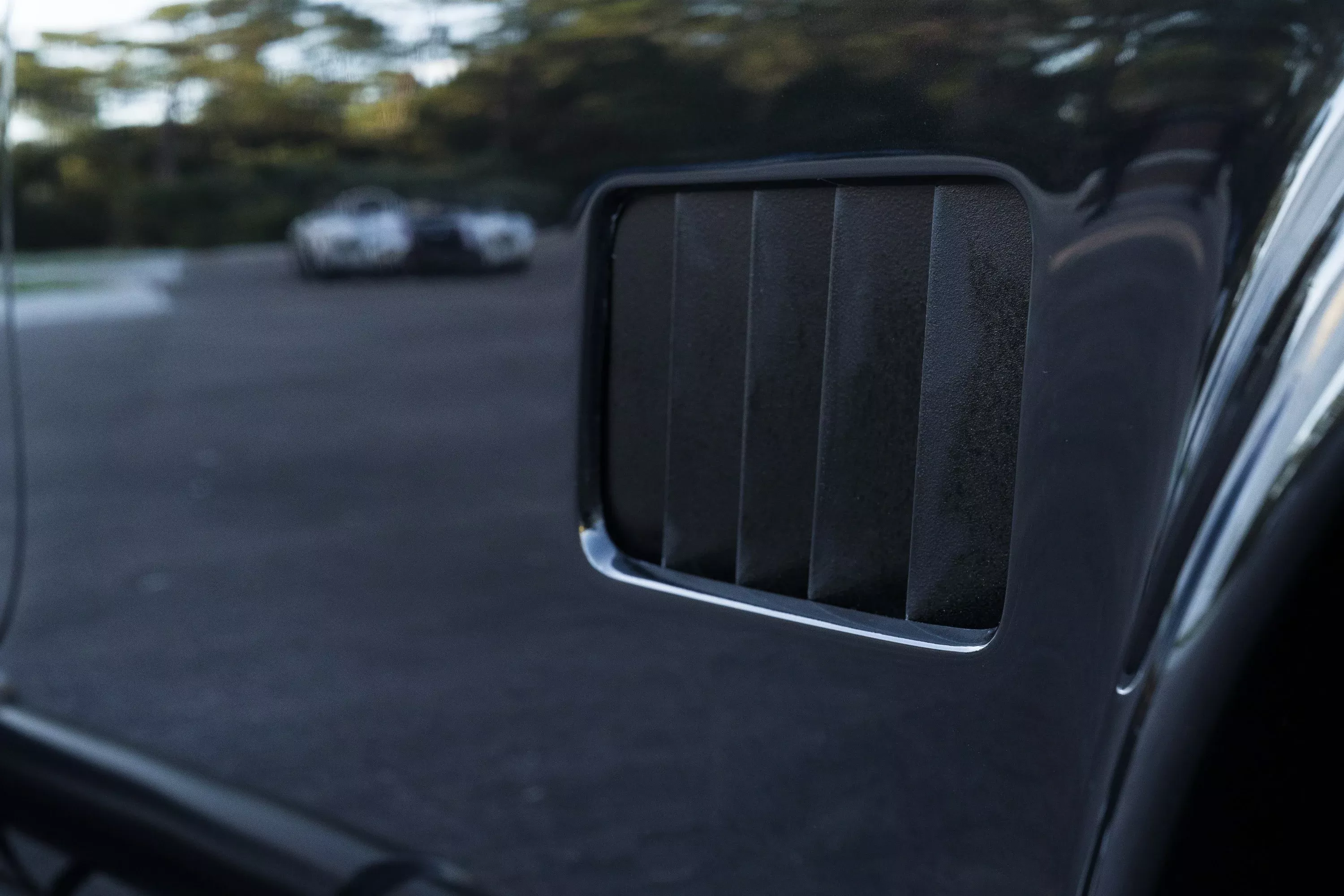

Latest technology single row high performance aluminum core radiator with 2 thermostatically-controlled electric fans; original specification oil cooler; hand fabricated stainless steel engine louvers; heater unit with 2 speed fan; original style wiper assembly with 2 speeds and 140 degree wiper arc; hand fabricated windshield assembly to original specification, chrome plated.

SPECIFICATIONS

DIMENSIONS and CAPACITIES:

  • Wheelbase: 90"
  • Length: 152"
  • Height (Top of screen): 48"
  • Width (Overall): 69"
  • Track Front: 54"
  • Track Rear: 57"
  • Fuel Tank: 17 gal.
  • Front Wheels: 15" x 8J
  • Rear Wheels: 15" x 10J
  • Tires-Front 255/60 R15
  • Tires-Rear 275/60 R15
  • Ford Super 8.8 differential. Ratio 3:55:1
  • Empty Weight: 1,840 lbs.
  • 351 Motor 2,485 lbs.
  • 427 Motor 2,590 lbs.
  • 460 Motor 2,660 lbs.

CHASSIS:

Jig-Welded parallel ladder frame of heavy wall 2" x 4" rectangular steel tubing with large diameter outriggers. Frame incorporates front and rear crumple zones. Door hinge, steering column and windshield pickup-points incorporated onto main chassis.

BODY:

Hand laid fiberglass panels with steel tube reinforcements in all openings. Where the body points carry loads they are reinforce with steel bars or panels. Body bonded to chassis and is completely non-stressed. Supplied painted in base coat and clear coat urethane finish. Body in aluminum optionally available.

FRONT & REAR SUSPENSION:

The front sports a fully independent unequal length A-arms with adjustable Bilstein coils over telescopic shock absorbers, while the rear is also independent unequal length A-arms, with fabricated hub carriers and coil over shock absorbers.

STEERING:

Rack and pinion. Original style steering wheel.

PEDAL BOX:

Fabricated steel plate pedal box assembly with adjustable pedal pads. Incorporates brake booster and master cylinder assembly with hydraulic clutch actuation.

FRONT BRAKES:

Wilwood big-brakes. Ventilated disc with 4-pot calipers.

REAR BRAKES:

Wilwood ventilated disc. Cable-operated hand brake actuates rear brakes.

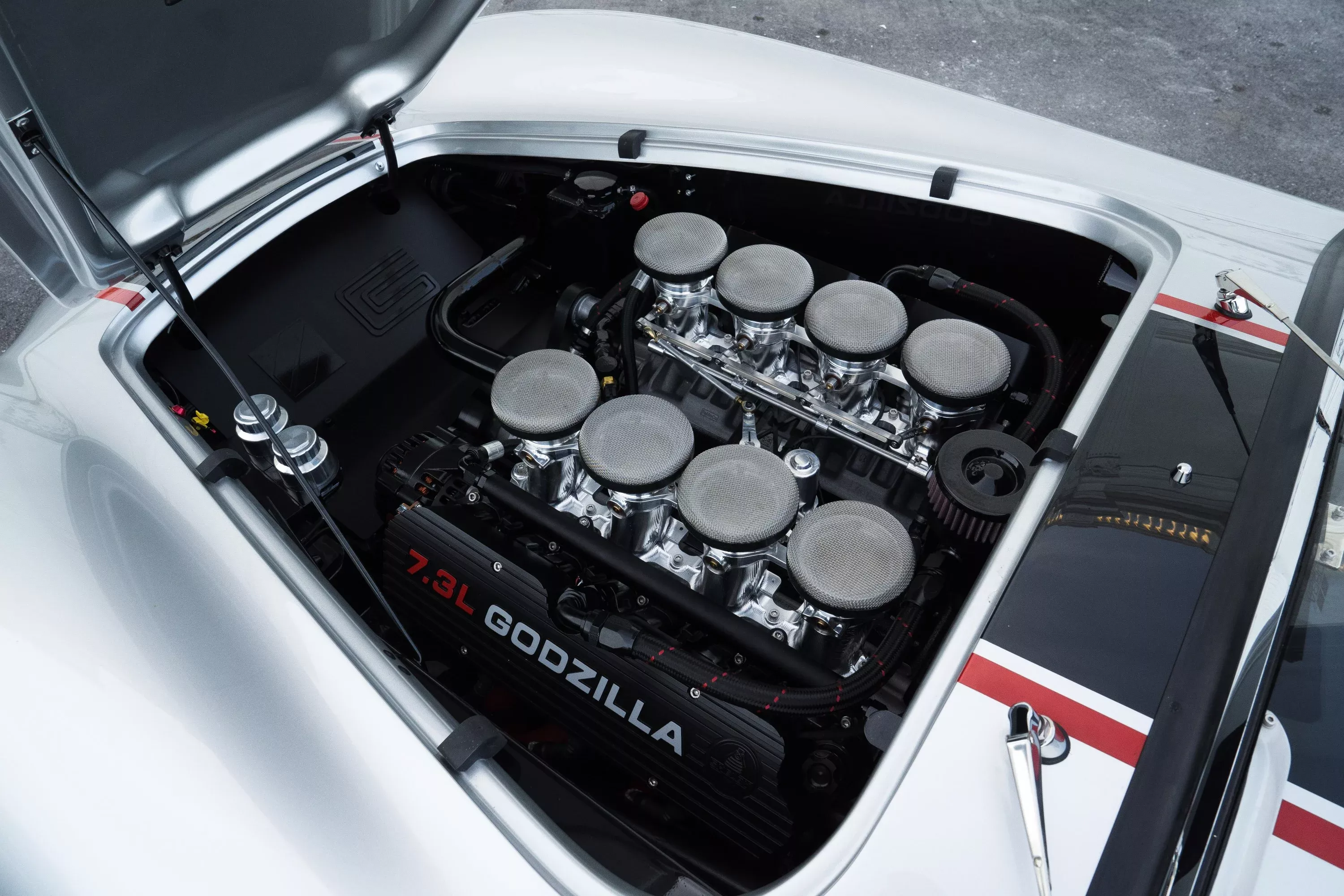

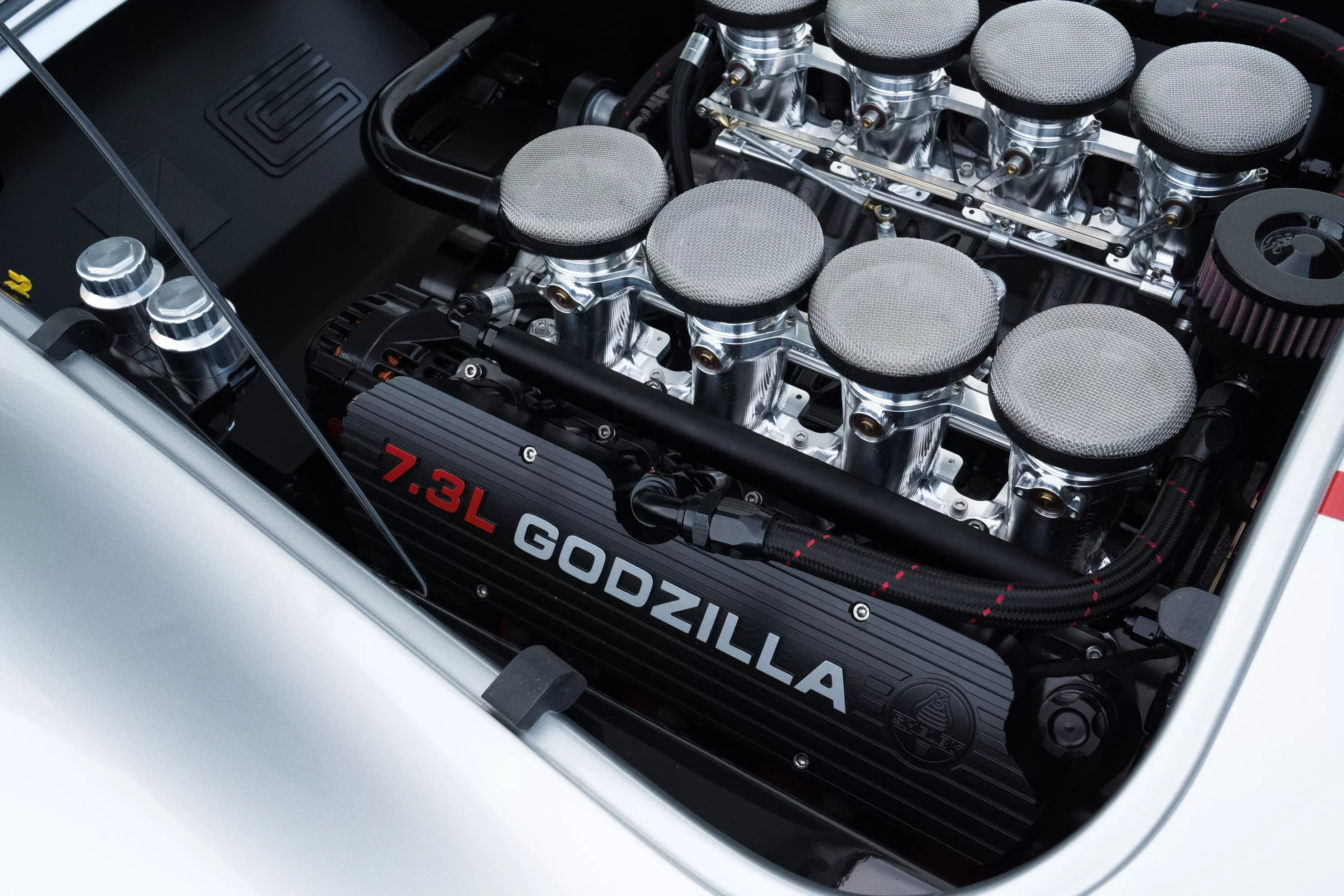

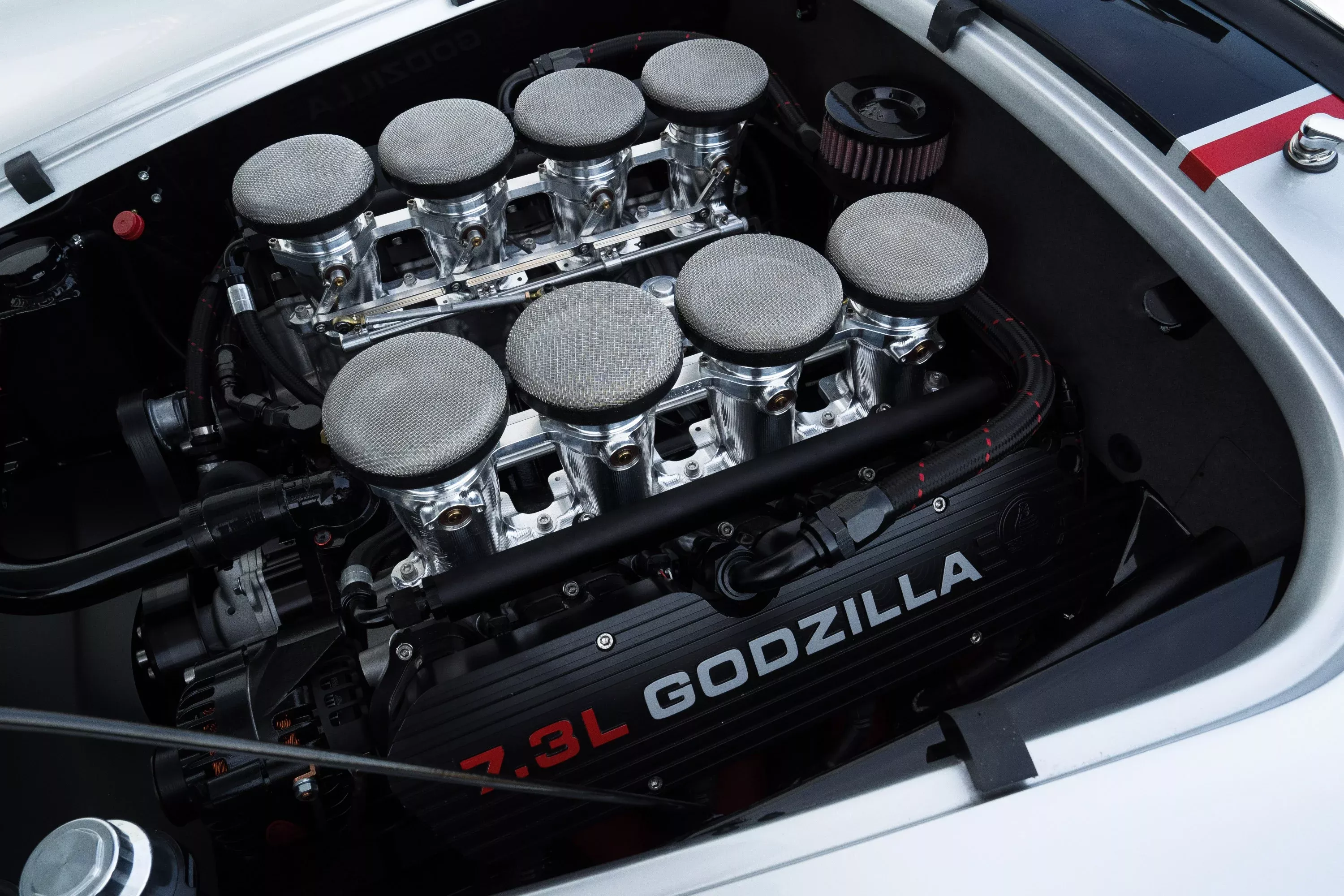

ENGINE and TRANSMISSION:

Installation kits are available for Ford 302, 351, 460 5.0 and 427/428 cubic inch engines with Tremec 5-speed or Ford top loader 4-speed transmissions. Ford Limited slip differential. Ratio 3:55:1 as standard equipment.

PLEASE NOTE:

All Superformance products are supllied complete, but without engines and transmissions. The selection, purchase and installation of the drive train are the responsibility of the purchaser.
